10000W 3-phase power supply 115V/87A, version for water cooling

Delivery at your place between May 22 and Jun 26 2025

Add to cart

About the product

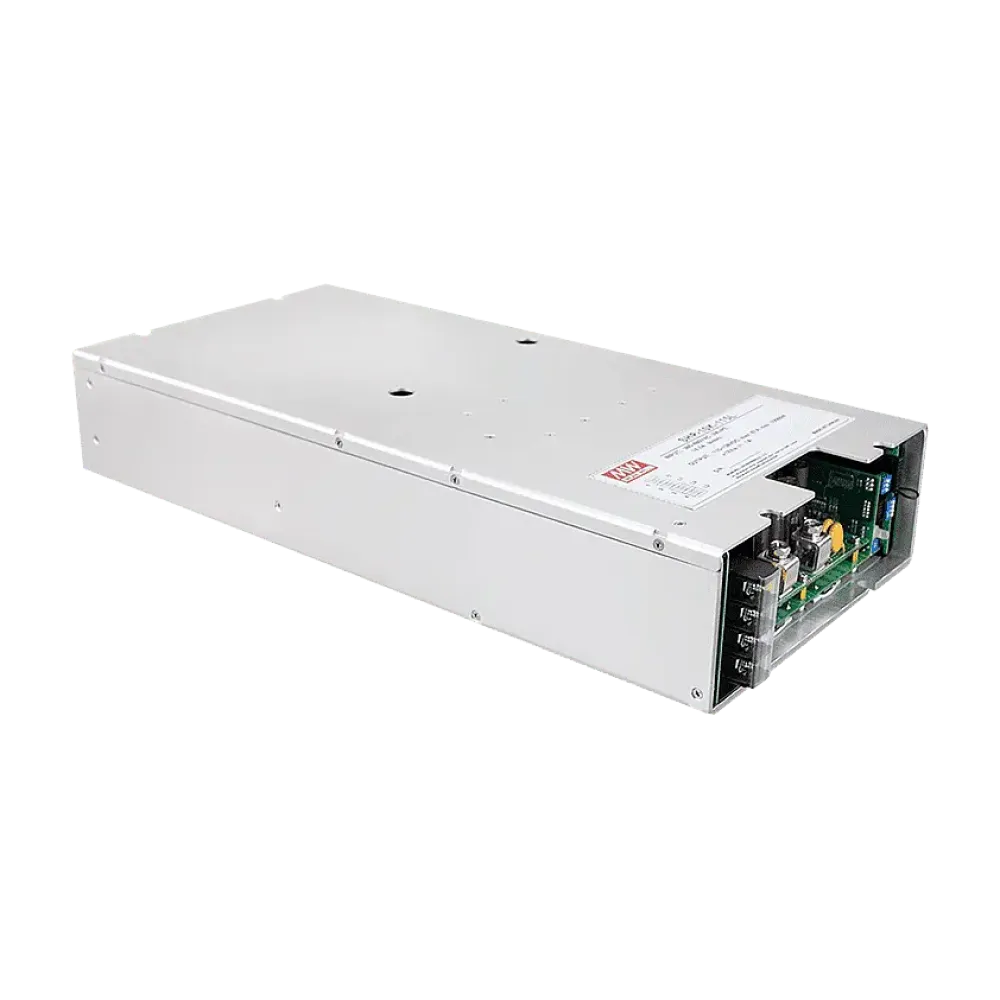

SHP-10K-115L is a digital 10kW power supply unit with 3-phase input. The "L" version is designed for operation with water cooling.

Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
Integrated remote on/off functions
Auxiliary circuit 12V/0.1A
Output voltage can be trimmed between 50 - 120% using an external control signal
Output current can be trimmed between 20 - 100% using an external control signal
Current sharing with up to 4 units up to 40kW
Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
Integrated CAN bus interface for monitoring and control
Designed for operation with water cooling
Operating temperature range from -30°C to +70°C
Dimensions 460 x 216 x 83.5mm (L x W x H)

Manufacturer	MEAN WELL
Status signals	AC OK signal, DC OK signal, fan failure
Control	CAN bus
Minimum VDC setting range	57.5 V
Maximum VDC setting range	138 V
Input voltage range (VAC)	340-530 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Width	216 mm
Power	10000 W
Output voltage (VDC)	115 V
Length	460 mm
Height	83.5 mm
Application	ITE/AV
Additional functions	12VDC auxiliary output, parallel switchable, water cooling
