7475W 3-phase power supply 115V/65A, version for water cooling

Delivery at your place between May 22 and Jun 26 2025

Add to cart

About the product

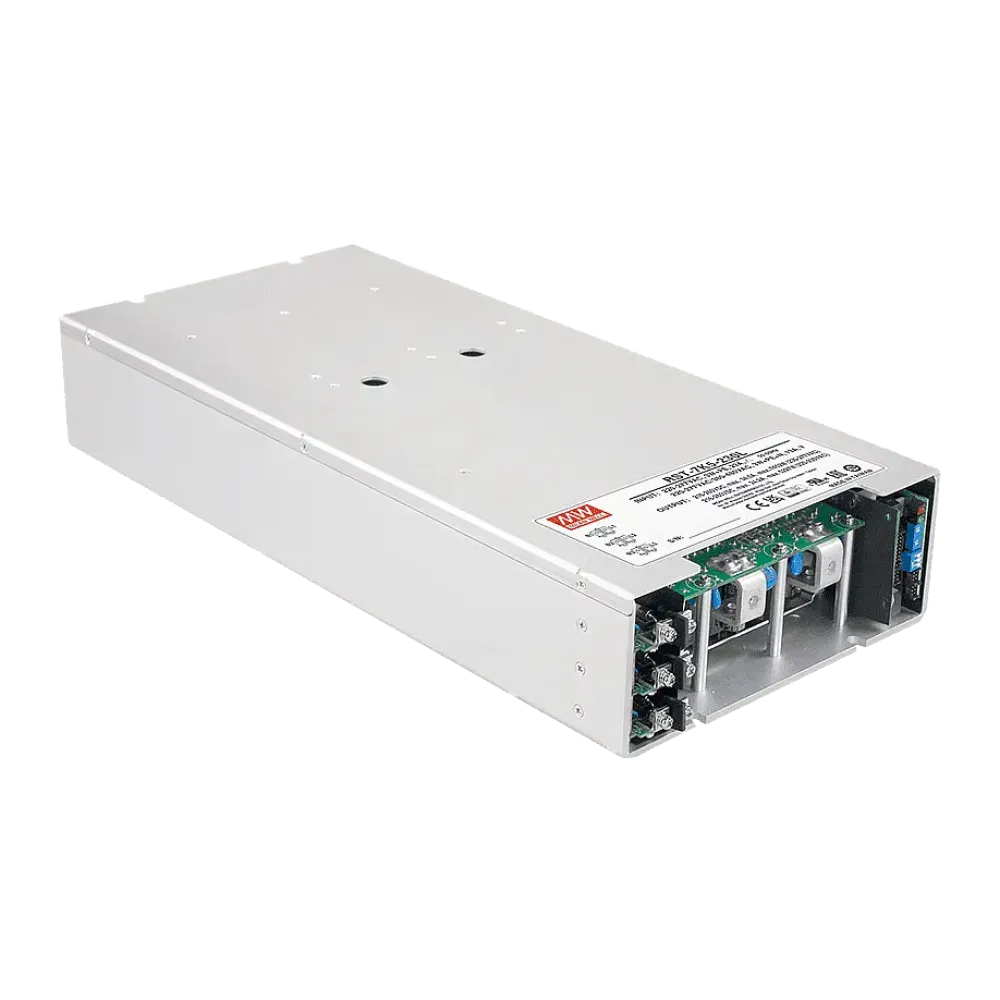

RST-7K5-115L is a 7.5kW power supply unit with 3-phase input. The "L" version is designed for operation with water cooling.

Three-phase input voltage range 196 to 305Vac (3-wire / delta connection) or 340 to 530Vac (4-wire / star connection)
Integrated remote on/off functions
Auxiliary circuit 12V/0.1A
Output voltage can be trimmed between 1 - 120% using an external control signal
Output current can be trimmed between 20 - 100% using an external control signal
Current sharing with up to 4 units up to 30kW
Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
Cooling designed for operation with water cooling
Operating temperature range from -30°C to +70°C
Dimensions 460 x 211 x 83.5mm (L x W x H)

Manufacturer	MEAN WELL
Minimum VDC setting range	1.15 V
Status signals	AC OK signal, DC OK signal, fan failure
Maximum VDC setting range	138 V
Input voltage range (VAC)	340-530 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Power	7475 W
Width	216 mm
Output voltage (VDC)	115 V
Length	460 mm
Height	83.5 mm
Application	ITE/AV
Additional functions	12VDC auxiliary output, parallel switchable, water cooling
