14950W 3-phase power supply 115V/130A

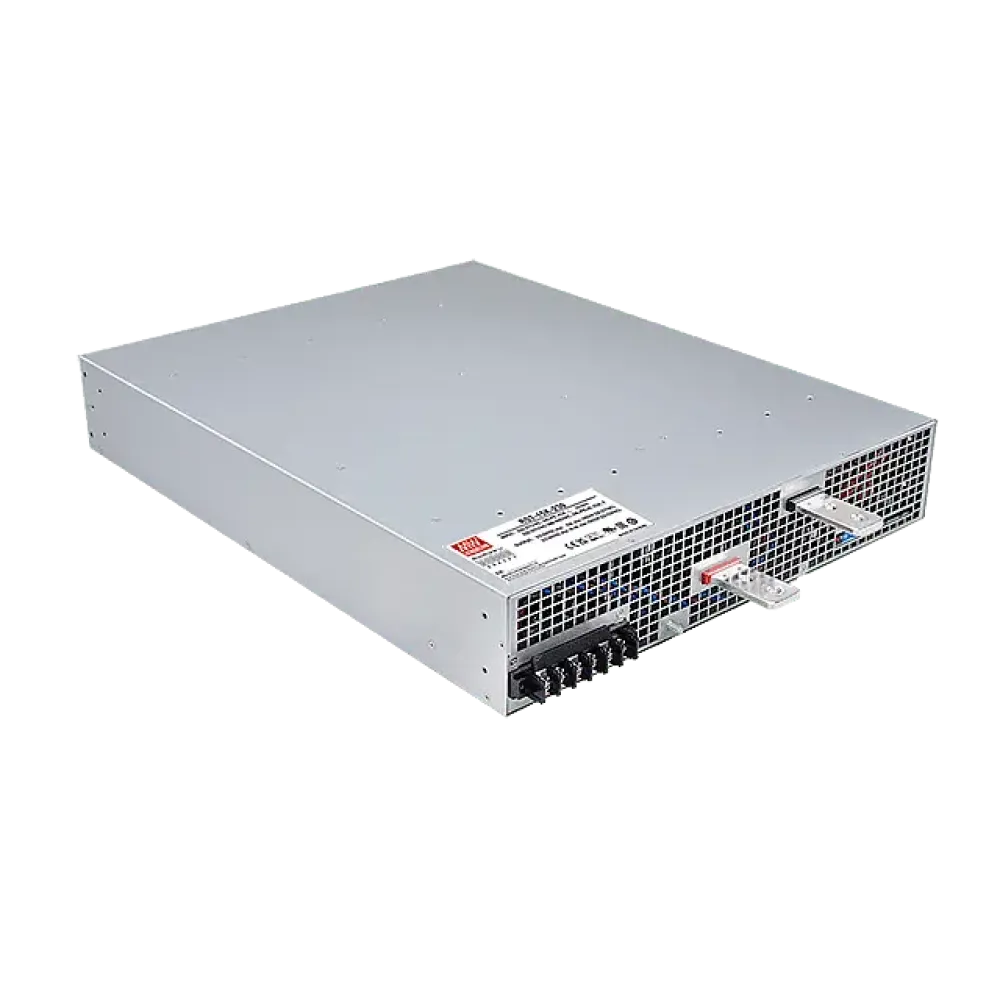

RST-15K-115 is a 15kW 3-phase AC/DC power supply unit. This series offers models with the most common high voltage DC outputs, 115Vdc, 230Vdc, 380Vdc.
. The power supply unit with air cooling can operate up to an ambient temperature of 70°C (full load up to 45°C). In addition, RST-15K offers great design flexibility by providing various functions, such as output programming, active current sharing, remote ON/OFF control, alarm signals, etc.

Technical data

• Three-phase input voltage range 196 to 305Vac (3-wire / delta connection) or 340 to 530Vac (4-wire / star connection)
• Integrated remote on/off functions
• Auxiliary circuit 12V/0.1A
• Output voltage can be trimmed between 1 - 120% using an external control signal
• Output current can be trimmed between 20 - 100% using an external control signal
• Current sharing with up to 2 units up to 30kW
• Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
• Air cooling with integrated, speed-controlled DC fan
• Operating temperature range from -30°C to +70°C
• Dimensions 540 x 424 x 83.5mm (L x W x H)
