About the product

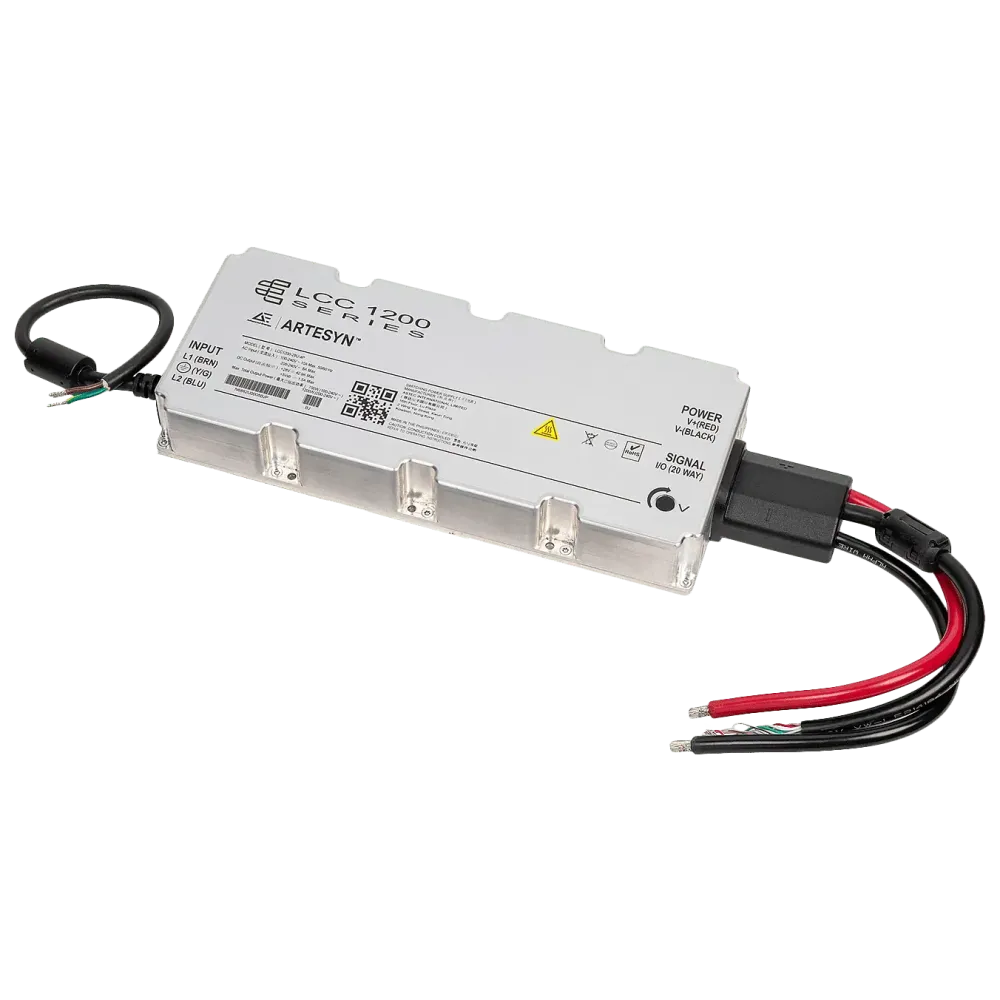

The Artesyn LCC1200 family from Advanced Energy consists of four voltage versions with conduction cooled AC/DC power supplies offering main output voltages of 24V, 28V, 36V or 48Vdc. Each version also has a 5Vdc standby output that can supply up to 1.5A. These 1200Watt rated power supplies have a thermal baseplate and are capable of delivering full output power over a wide temperature range of -40°C..+85°C. The main output is adjustable for maximum application flexibility. For example, the 28Vdc version can be adjusted from 24Vdc to 30Vdc and has a maximum output current of 42.9A.
Technical data
- 1200 watts full power even at high temperatures
- Wide temperature range from -40°C..+85°C with base plate
- Adjustable output voltages
- Remote On/Off
- AC_OK ; DC_OK signals
- 5Vdc standby
- Active current sharing
- Conduction cool/fanless
- I2C / PMBus
- ITE Safety
- Active PFC
- Optional : IP65 version
Product specifications
| Input voltage range (VAC) | 90-264 V |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| IP protection | IP65 |
| Manufacturer | Artesyn |
| Width | 115 mm |
| Output voltage (VDC) | 28 V |
| Control signals | Remote ON/OFF |
| Length | 278 mm |
| Power | 1200 W |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 40 mm |
| Status signals | AC OK signal, DC OK signal |
