About the product

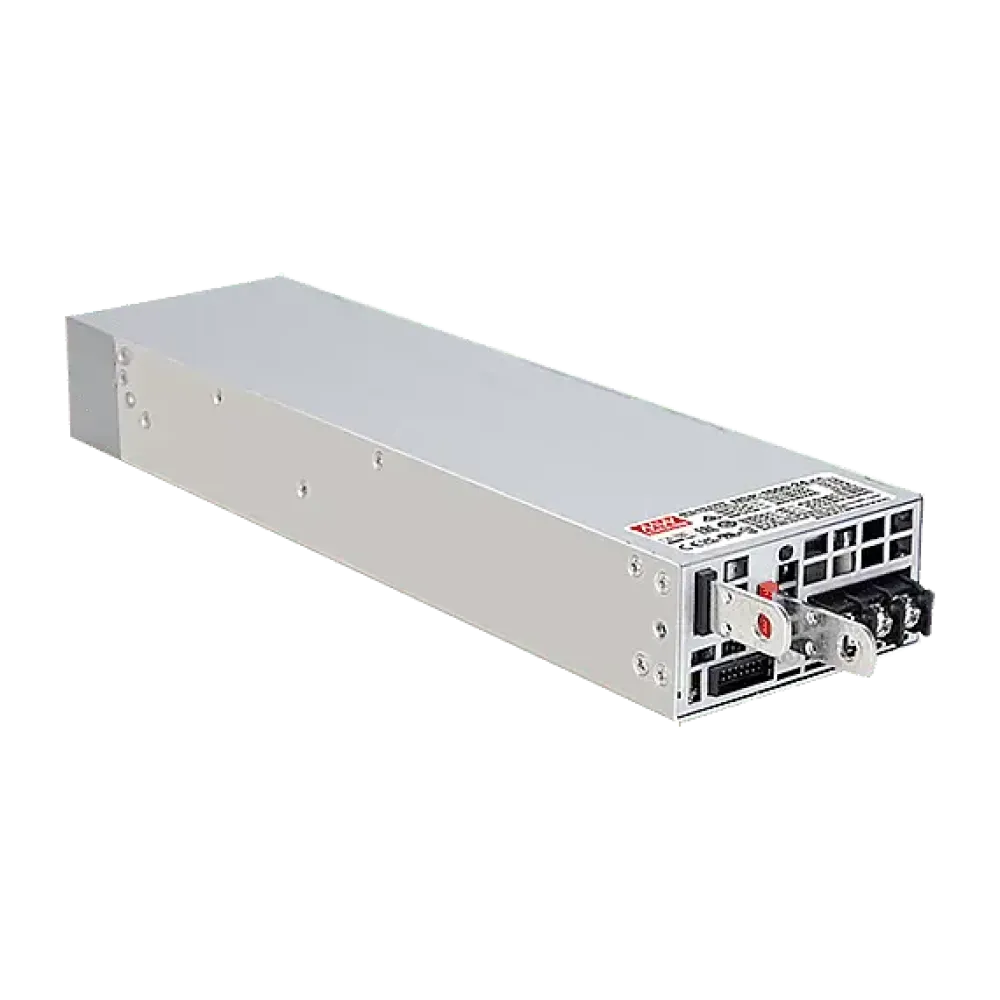

NSP-1600-48 is an industrial AC/DC power supply unit with an excellent price/performance ratio. Cooling is controlled by a temperature-controlled fan.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Remote Sense and Remote On/Off functions integrated
- 12V/0.8A auxiliary output
- Output voltage can be trimmed between 40 - 125% using an external control signal (60 - 125% for the NSP-1600-12)
- DC OK signal and overtemperature alarm signal (OTP)
- Air cooling with temperature-controlled DC fan
- Operating temperature range from -30°C to +70°C (note derating)
- Dimensions 300 x 85 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 58.8 V |
| Status signals | DC OK signal, temperature alarm |
| Control signals | Programmable voltage, remote ON/OFF, remote sense |
| Additional functions | 12VDC auxiliary output |
| Length | 300 mm |
| Power | 1600 W |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 41 mm |
| Width | 85 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Minimum VDC setting range | 47.5 V |
Data sheets
