About the product

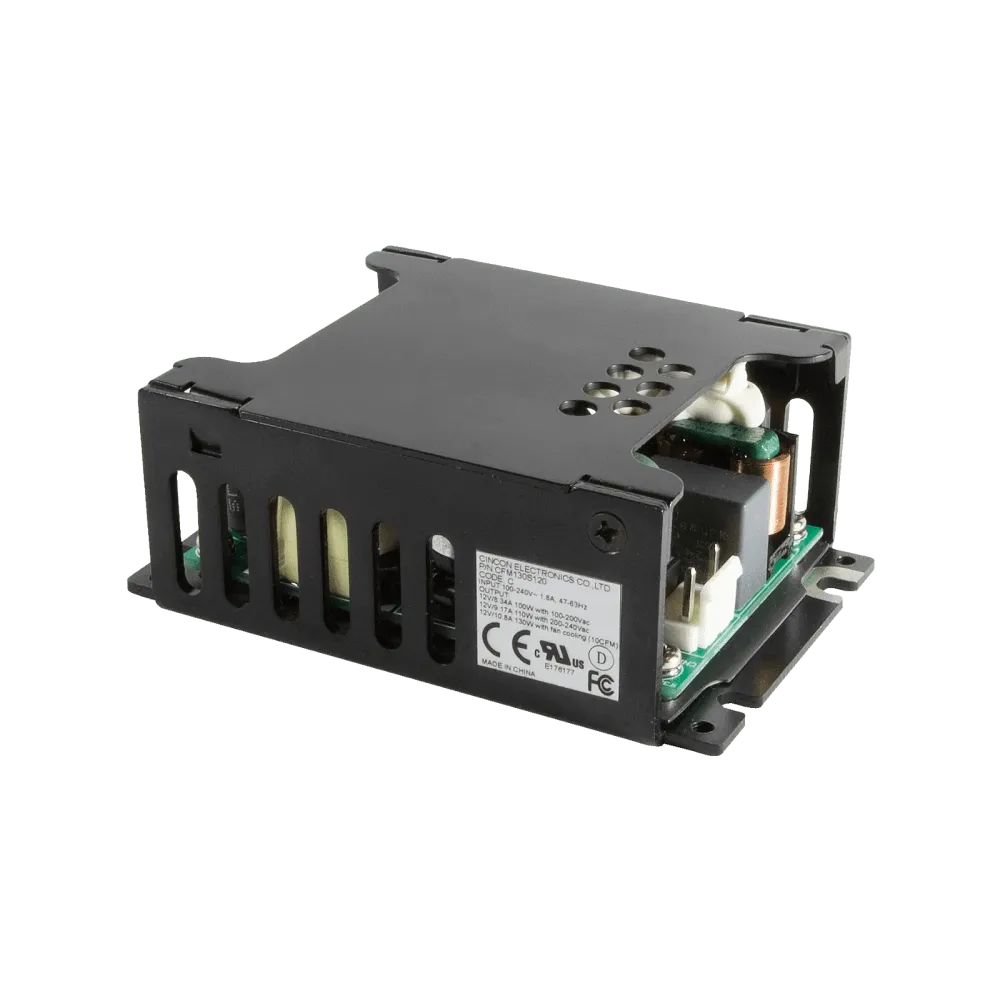

CFM130M180-C from Cincon is a medical AC/DC power supply with 2 MOPP and high power density, which is compatible with both Class I and Class II and offers an output of 130W with a dimension of 91.4×64.0×34.5 mm. It has safety approvals according to UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 and complies with IEC/EN60335-1.
Technical data
- Input voltage range 80 to 264Vac
- Active PFC
- No load power consumption 150mW
- High efficiency 94%
- 100 watts with natural convection
- 130 watts with fan
- Protective circuit: Permanent short circuit
- Complies with IEC60601-1, EN60601-1 and ES60601-1, 2 MOPP
- Complies with IEC/EN60335-1
- EMI safety complies with Class Ⅰ and Class Ⅱ
- Application range 5000m
Product specifications
| Manufacturer | Cincon |
| Width | 64 mm |
| Input voltage range (VAC) | 80-264 V |
| Application | Medical |
| Power | 130 W |
| Protection class | Class I, Class II |
| Output voltage (VDC) | 18 V |
| Length | 91.4 mm |
| Height | 34.5 mm |
