About the product

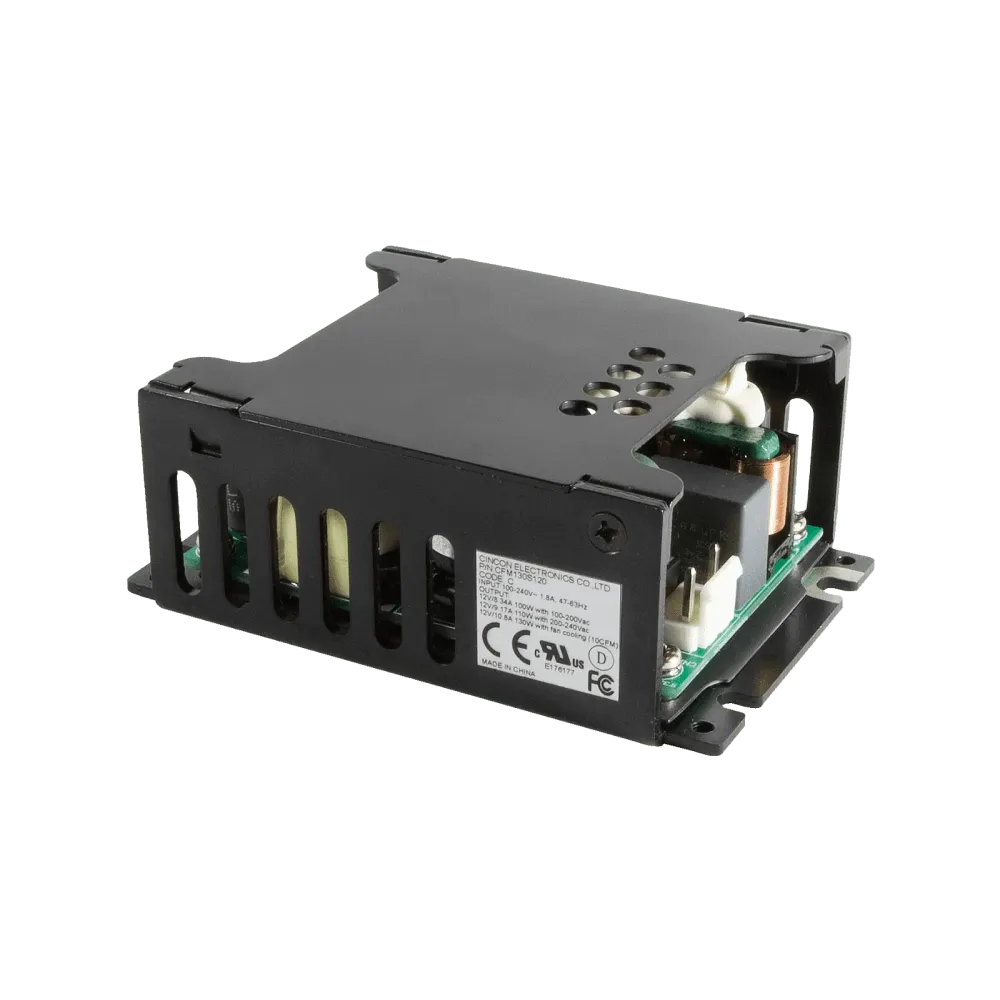

CFM130S180-C from Cincon is a high power density ITE AC/DC power supply compatible with both Class I and Class II.It has safety approvals in accordance with IEC/UL/EN62368-1 and complies with IEC/EN60335-1.
Technical data
- Universal input range 80.. 264Vac
- High efficiency 94%
- Active PFC function
- No load power consumption <150mWatt
- Continuous short-circuit protection
- Operating altitude 5000m
- IEC/EN/UL62368-1
- EMI Safety Meets Class I and Class II
Product specifications
| Manufacturer | Cincon |
| Width | 64 mm |
| Input voltage range (VAC) | 80-264 V |
| Power | 130 W |
| Protection class | Class I, Class II |
| Output voltage (VDC) | 18 V |
| Length | 91.4 mm |
| Height | 34.5 mm |
| Application | Budget, ITE/AV |
