About the product

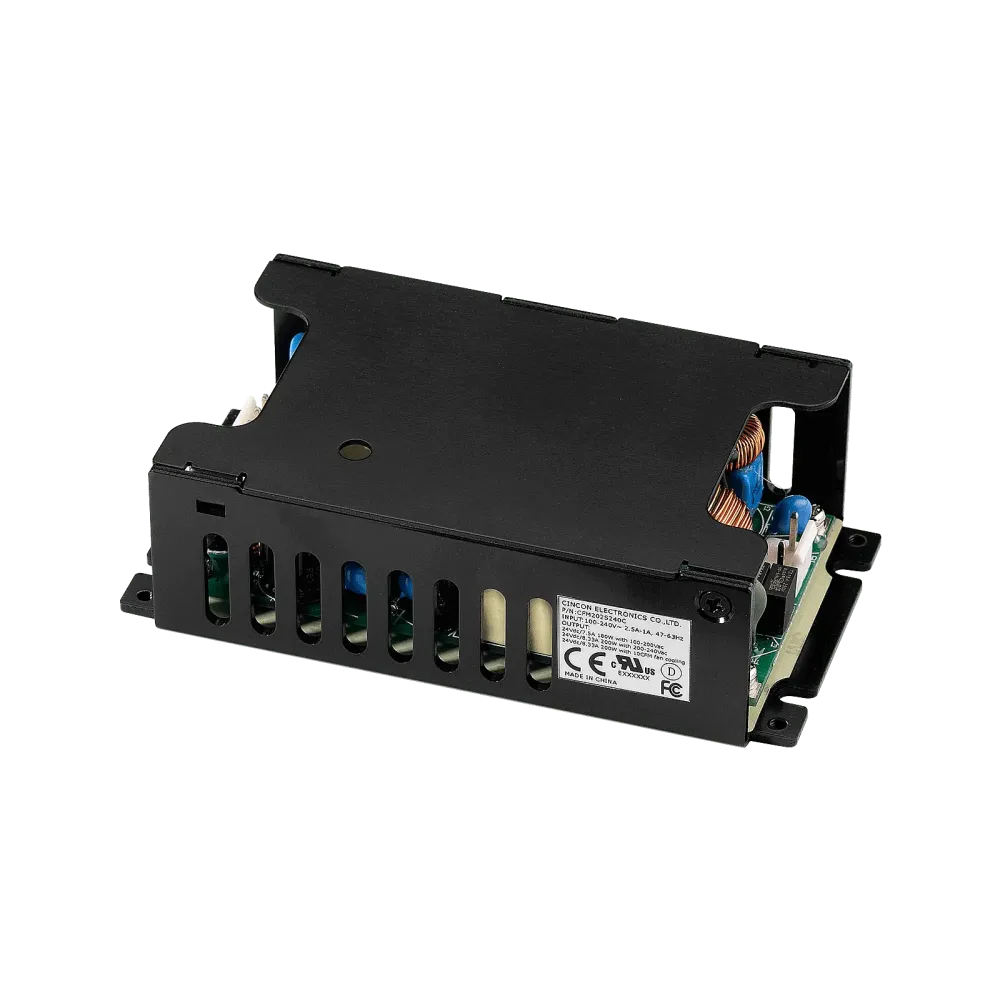

CFM202S480C from Cincon is a high power density ITE AC/DC power supply that is compatible with both Class I and Class II and provides up to 200W of power in a 64×116.8mm footprint. It has safety approvals according to IEC/UL/EN62368-1 and IEC/EN60335-1.
Version C (Cover)
Technical data
- Universal input range 90.. 264Vac
- High efficiency of up to 94
- Active PFC function
- Dimensions 2.52" x 4.6"
- 180 watts with natural convection
- 200 Watt fan-cooled
- No load power consumption <150mW
- Continuous short-circuit protection
- Operating altitude 5000m
- Approved safety according to IEC/EN/UL62368-1 and IEC/EN60335-1
- EMI safety complies with Class I and Class II
Product specifications
| Output voltage (VDC) | 48 V |
| Power | 200 W |
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | Cincon |
| Width | 64 mm |
| Protection class | Class I, Class II |
| Height | 34.5 mm |
| Length | 116.8 mm |
| Application | Budget, ITE/AV |
