About the product

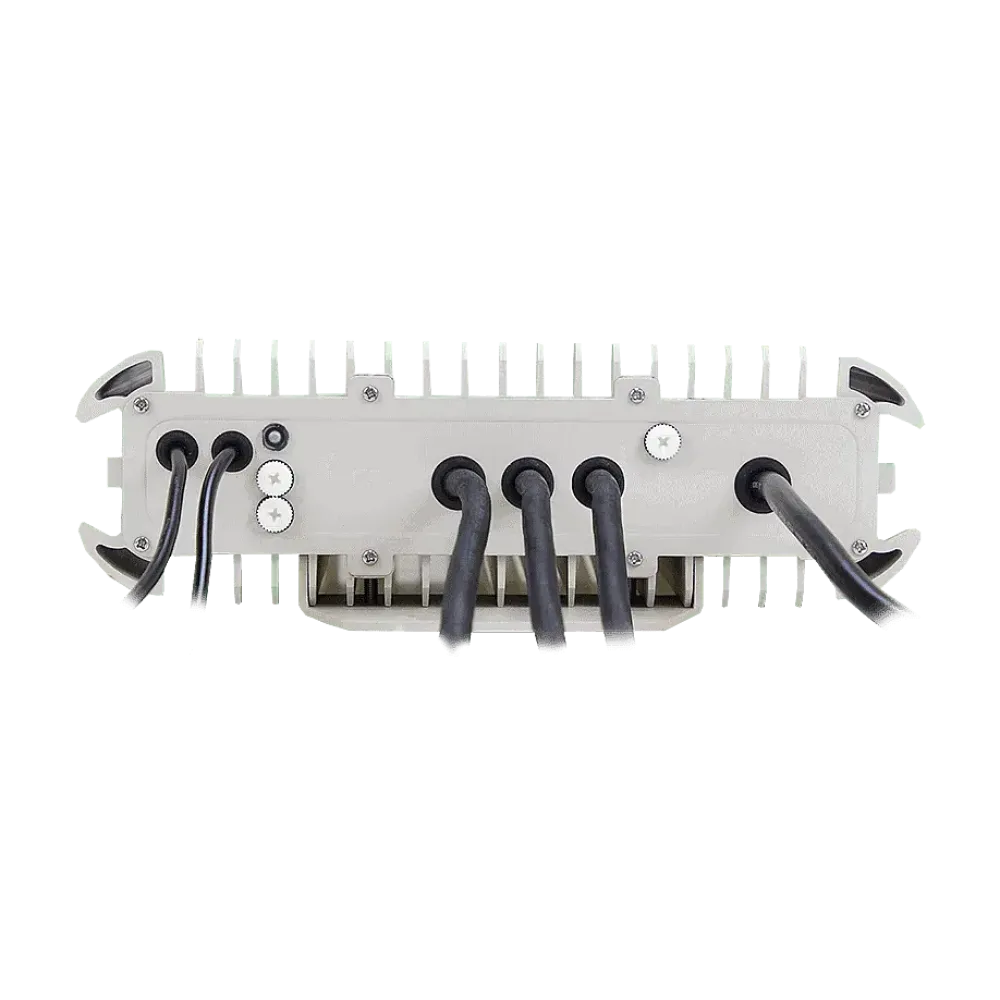

HEP-2300-115W is an industrial AC/DC power supply unit with an output of 2300 W. Thanks to its robust design, the power supply unit can work in very humid, dusty, oily and vibration-intensive environments. The entire series is installed in an aluminum housing and fully encapsulated with thermally conductive adhesive. The entire series has a wide range input of 90-305Vac and offers an output voltage of 115V, 230V or 380V. In addition to the high efficiency of up to 95.5%, the entire series operates from -40°C to +70°C under convection without a fan. HEP-2300 has full protection functions and 10G anti-vibration capability; it complies with international safety regulations such as TUV EN62368-1, UL62368-1, and the design refers to EN61558-1 and EN60335-1. The HEP-2300 series is suitable as a powerful power supply solution for various industrial applications.
Technical data
- High voltage output
- 95% High efficiency
- Fanless, convection cooled
- Built into aluminum housing and encapsulated
- Meets 10G vibration test
- Output voltage and output current Programmable
- IP67
- Version with cable
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 57.5 V |
| Maximum VDC setting range | 138 V |
| Additional functions | 12VDC auxiliary output |
| IP protection | IP67 |
| Height | 88 mm |
| Width | 280 mm |
| Length | 375 mm |
| Power | 2300 W |
| Output voltage (VDC) | 115 V |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 90-305 V |
| Control signals | Programmable current, programmable voltage |
