About the product

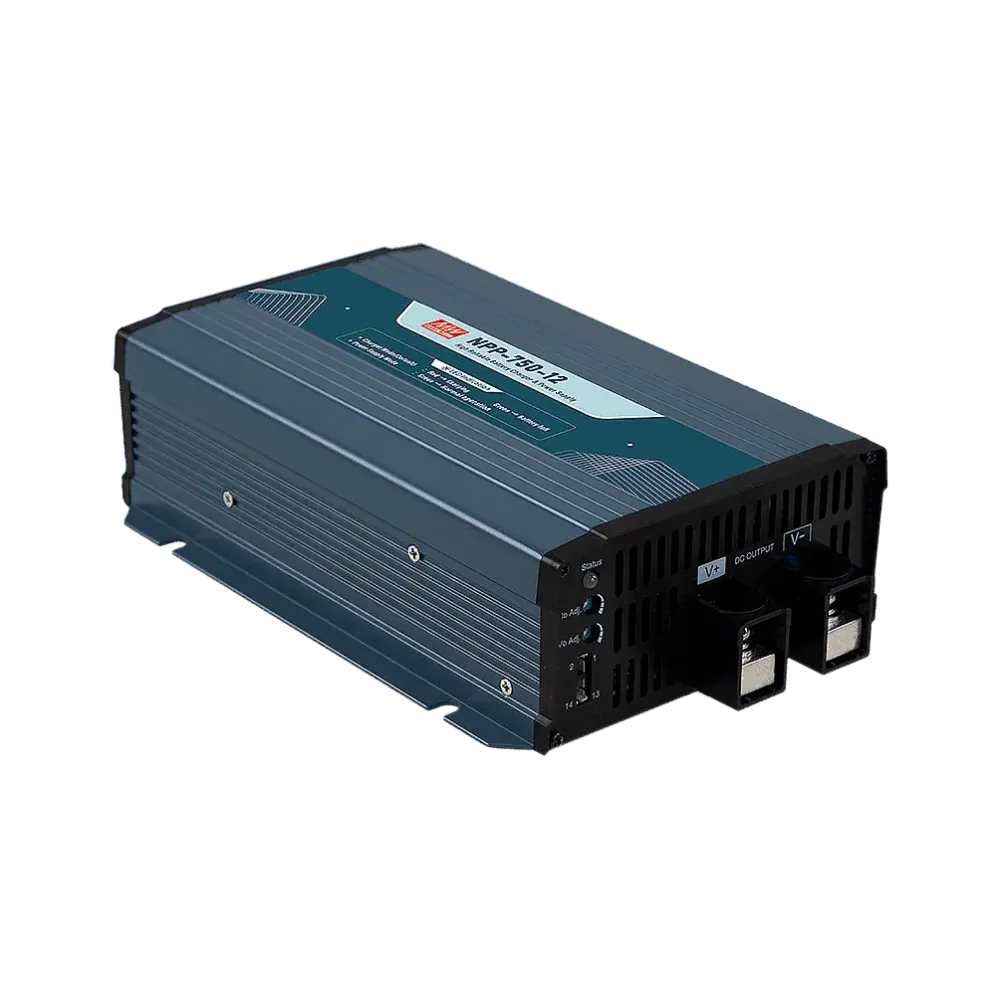

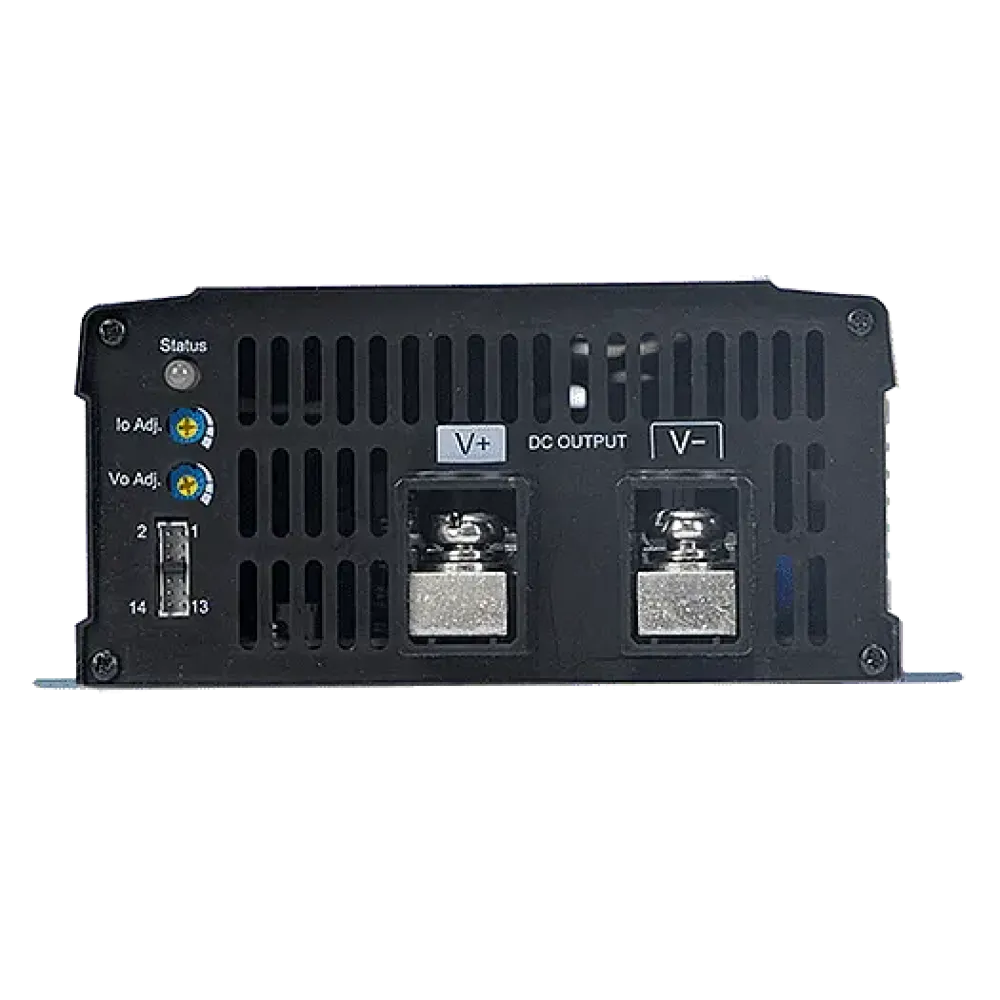

NPP-750-48 can be used as a charger for lead batteries or as a power supply unit with voltage output. The operating mode can be selected by setting a jumper on the front panel. The devices are set as chargers at the factory.
The extremely wide voltage range of 42 to 80Vdc can be set on the device using a potentiometer.
Technical data
- Voltage output 42 to 80Vdc
- Can be used as a charger or power supply unit
- 3-stage charging characteristics for charging lead batteries
- Remote ON-OFF
- Temperature-controlled fan for noise reduction and increased service life
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 80 V |
| Minimum VDC setting range | 42 V |
| Height | 67 mm |
| Width | 158 mm |
| Output voltage (VDC) | 57.6 V |
| Length | 230 mm |
| Control signals | Remote ON/OFF |
| Status signals | DC OK signal |
| Power | 750 W |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 90-264 V |
| Additional functions | Battery charger |
