About the product

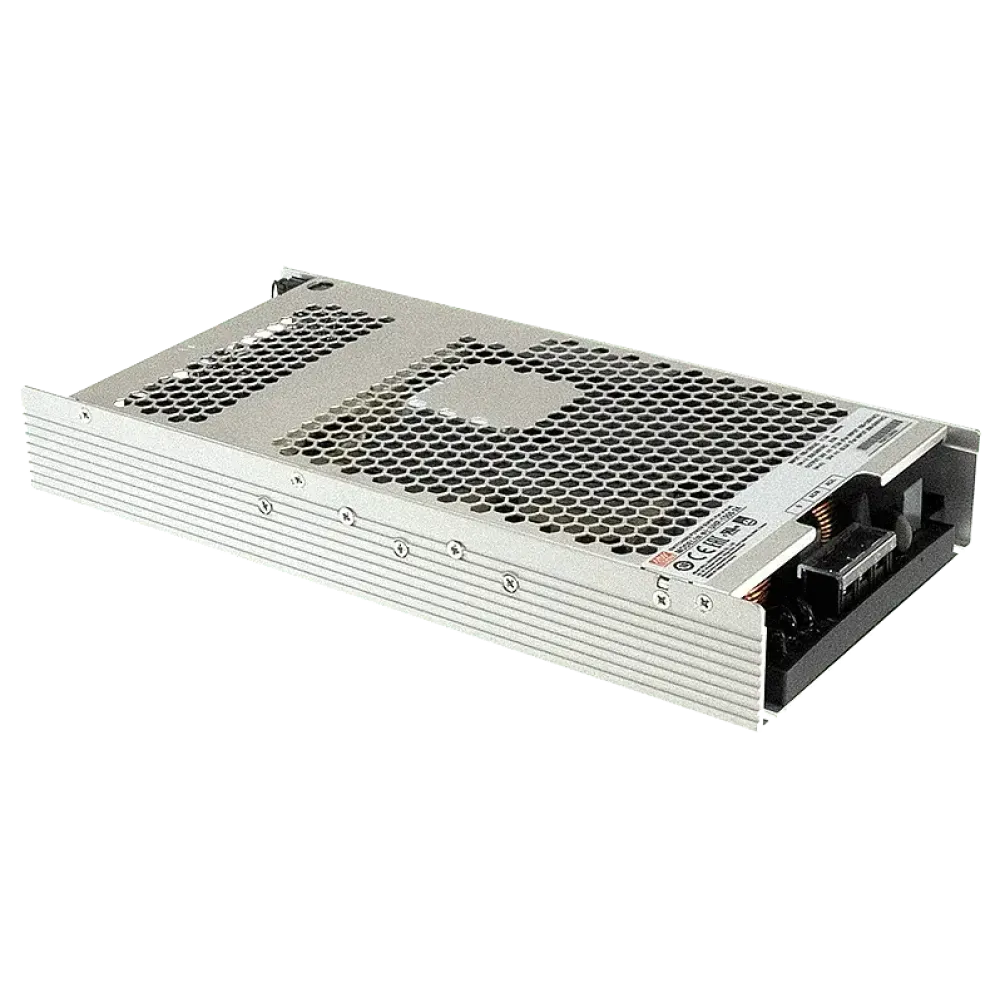

The UHP-1500-230 is a compact, fanless power supply unit in a housing with a height of just 41 mm and a high output voltage.
Technical data
- Input voltage 90 to 264Vac
- High efficiency up to 96
- DC OK signal
- Remote ON/OFF
- Programmable voltage from 50 to 120%
- Programmable current from 20 to 100%
- Full load operation with conduction cooling (without fan)
- Operating temperature range from -30°C to +70°C
- Approved for operation up to 5000 meters altitude
- Dimensions 290 x 140 x 41mm (L x W x H)
Product specifications
| Length | 290 mm |
| Maximum VDC setting range | 260 V |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF |
| Additional functions | 12VDC auxiliary output |
| Output voltage (VDC) | 230 V |
| Width | 140 mm |
| Power | 1500 W |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 41 mm |
| Input voltage range (VAC) | 90-264 V |
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 108 V |
