About the product

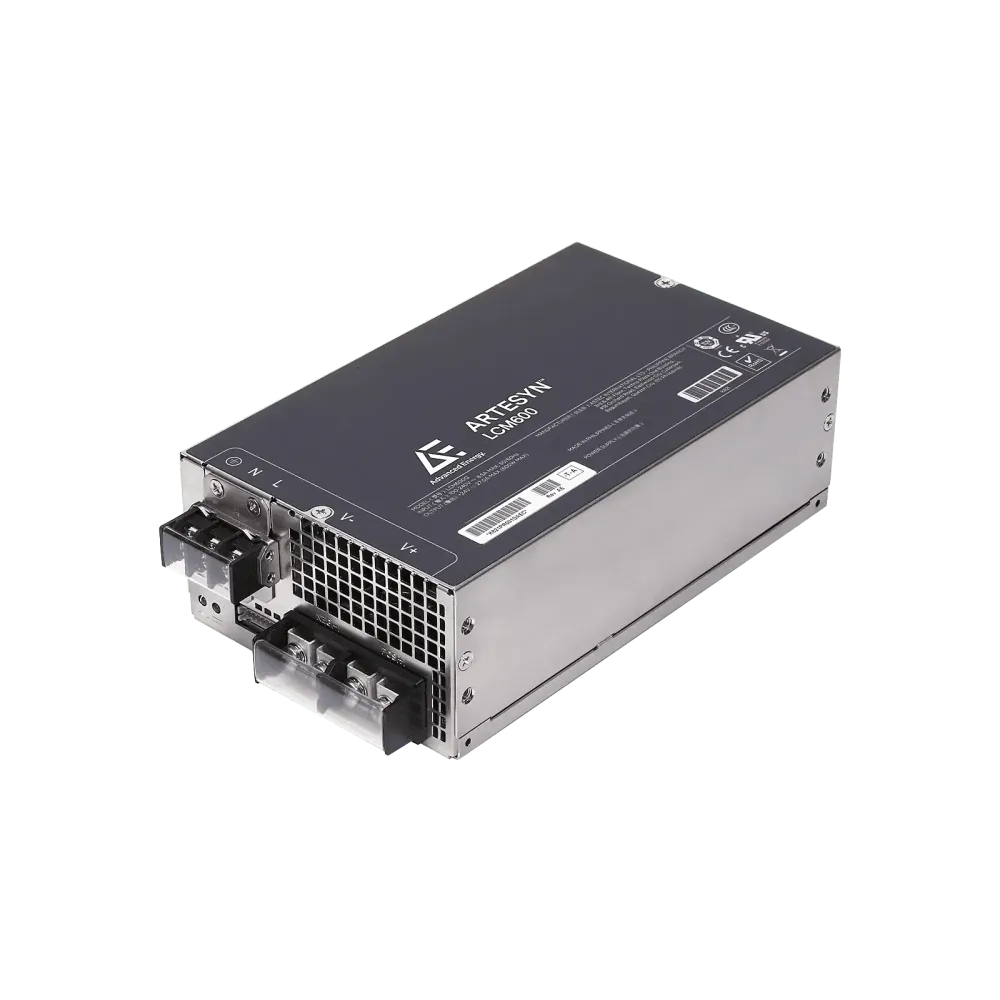

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.
Technical data
- 600Watt output voltage
- Dimensions 190.5 x 114.3 x 60.96mm
- Industry/Medical Safety approval
- No power reduction with 85Vac input
- Ambient temperature -40°C..+70°C with derating
- Option 5Vdc @2A standby
- Efficiency 89%
- Variable speed "Smart Fan"
- DSP controls front end
- Conformal coating option
- Output voltage adjustable +/-20%
- Margin programming
- ORing FET
- Input terminal block option
- Warranty 3 years
- Hersterller Artesyn
Product specifications
| Output voltage (VDC) | 36 V |
| Maximum VDC setting range | 43.2 V |
| Minimum VDC setting range | 28.8 V |
| Additional functions | Parallel switchable |
| Control signals | Remote sense |
| Length | 190.5 mm |
| Height | 60.96 mm |
| Manufacturer | Artesyn |
| Protection class | Class I |
| Width | 114.3 mm |
| Application | ITE/AV, Medical |
| Input voltage range (VAC) | 85-264 V |
| Power | 600 W |
| Status signals | AC OK signal, DC OK signal |
