624W medical power supply 12Vdc/52A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

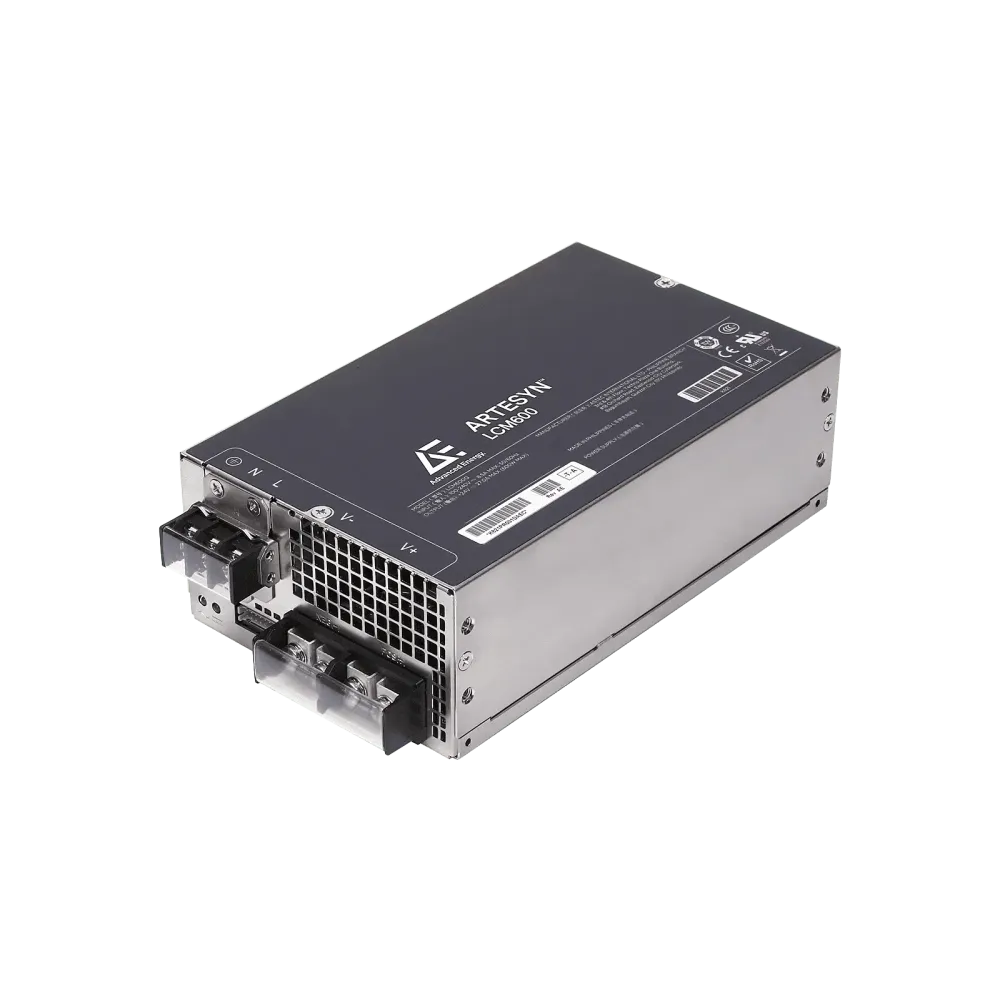

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.

Technical data

600Watt output voltage
Dimensions 190.5 x 114.3 x 60.96mm
Industry/Medical Safety approval
No power reduction with 85Vac input
Ambient temperature -40°C..+70°C with derating
Option 5Vdc @2A standby
Efficiency 89%
Variable speed "Smart Fan"
DSP controls front end
Conformal coating option
Output voltage adjustable +/-20%
Margin programming
ORing FET
Input terminal block option
Warranty 3 years
Hersterller Artesyn

Product specifications

Output voltage (VDC)	12 V
Maximum VDC setting range	14.4 V
Minimum VDC setting range	9.6 V
Additional functions	Parallel switchable
Control signals	Remote sense
Length	190.5 mm
Height	60.96 mm
Manufacturer	Artesyn
Power	624 W
Protection class	Class I
Width	114.3 mm
Application	ITE/AV, Medical
Input voltage range (VAC)	85-264 V
Status signals	AC OK signal, DC OK signal
