About the product

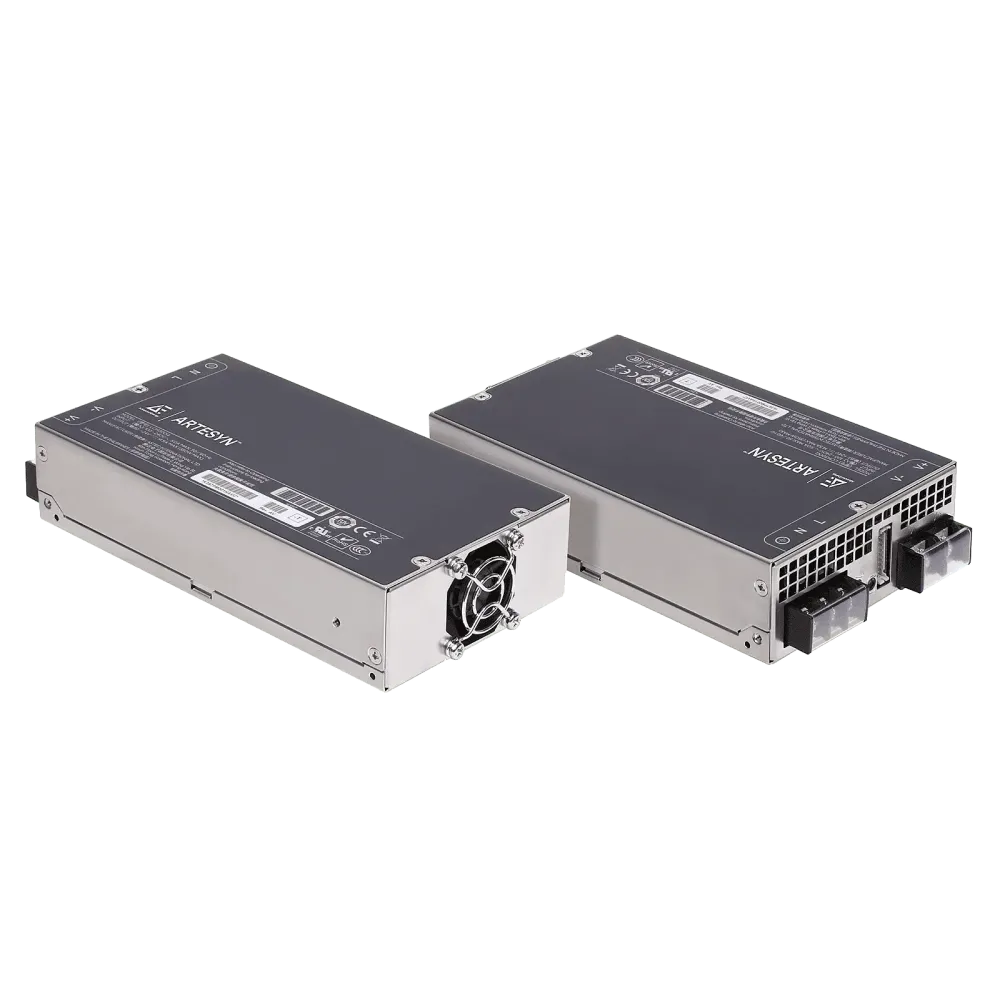

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.
Technical data
- 310Watt output power
- Dimensions 177.8 x 101.6 x 40.9mm
- Industry/Medical Safety
- No power reduction with 85Vac input
- Ambient temperature -40°C..70°C with derating
- Option 5Vdc @2A standby
- Efficiency 91%
- Variable speed "Smart Fans"
- I2C / PMBus
- DSP controlled
- Conformal coating option
- Wide output voltage adjustable
- Margin programming
- ORing FET
- PMBus compliant
- Warranty 3 years
- Manufacturer Artesyn
Product specifications
| Power | 300 W |
| Status signals | AC OK signal, DC OK signal |
| Control | PMBus |
| Minimum VDC setting range | 14.2 V |
| Additional functions | Parallel switchable |
| Control signals | Remote sense |
| Height | 40.9 mm |
| Length | 177.8 mm |
| Manufacturer | Artesyn |
| Width | 101.6 mm |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Output voltage (VDC) | 15 V |
| Input voltage range (VAC) | 90-264 V |
| Maximum VDC setting range | 19.5 V |
Data sheets
