About the product

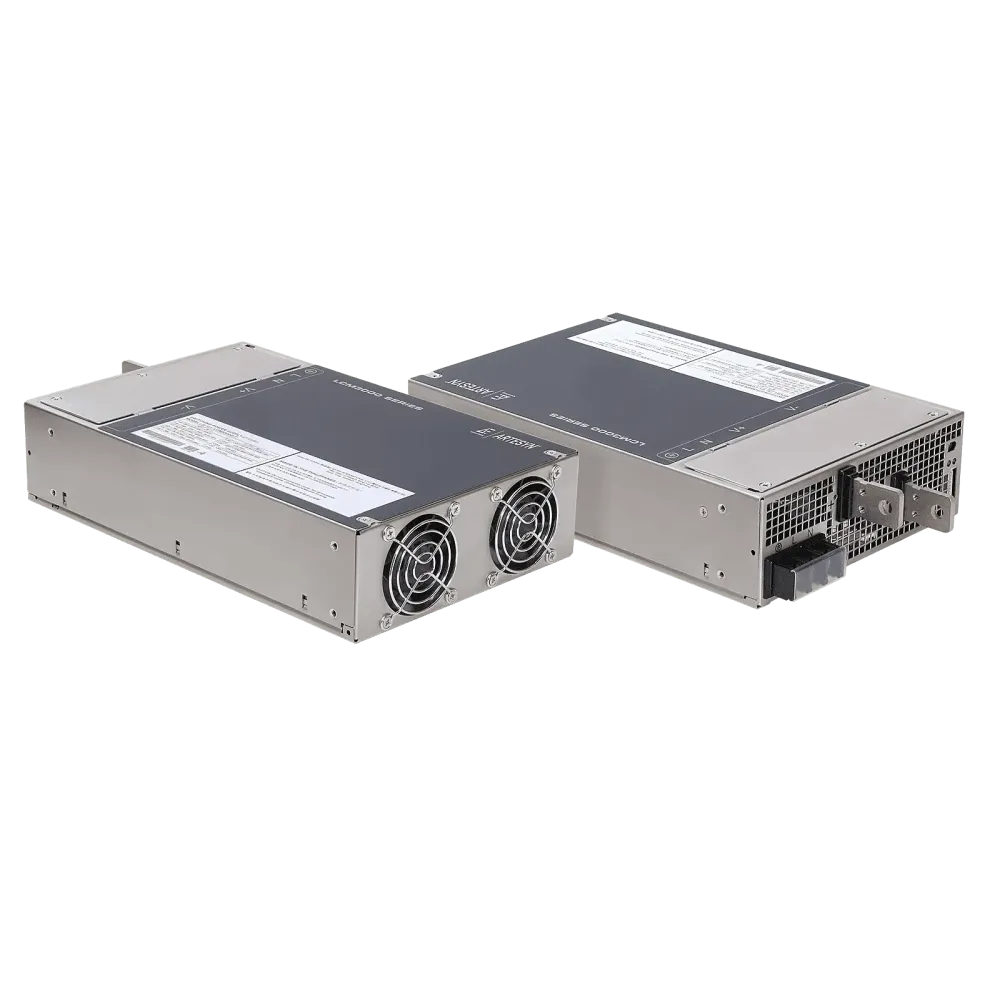

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.
Technical data
- 3000Watt output power
- Dimensions 282.6 x 177.8 x 63.5mm
- Industry/Medical Safety approval
- No power reduction with 85Vac input
- Ambient temperature -40°C..+70°C with derating
- 5Vdc @2A standby
- Efficiency 90%
- Variable speed "Smart Fan"
- I2C / PMBus
- DSP controlled
- Option conformal coat
- Output voltage range adjustable ±25%
- Output voltage programming from 20%..125%
- VAR configurable to any output voltage of a single unit
- Warranty 5 years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 36 V |
| Status signals | AC OK signal, DC OK signal |
| Control | PMBus |
| Minimum VDC setting range | 7.2 V |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| Control signals | Remote sense |
| Length | 282.6 mm |
| Manufacturer | Artesyn |
| Width | 177.8 mm |
| Height | 63.5 mm |
| Power | 3000 W |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Input voltage range (VAC) | 90-264 V |
| Maximum VDC setting range | 36 V |
