About the product

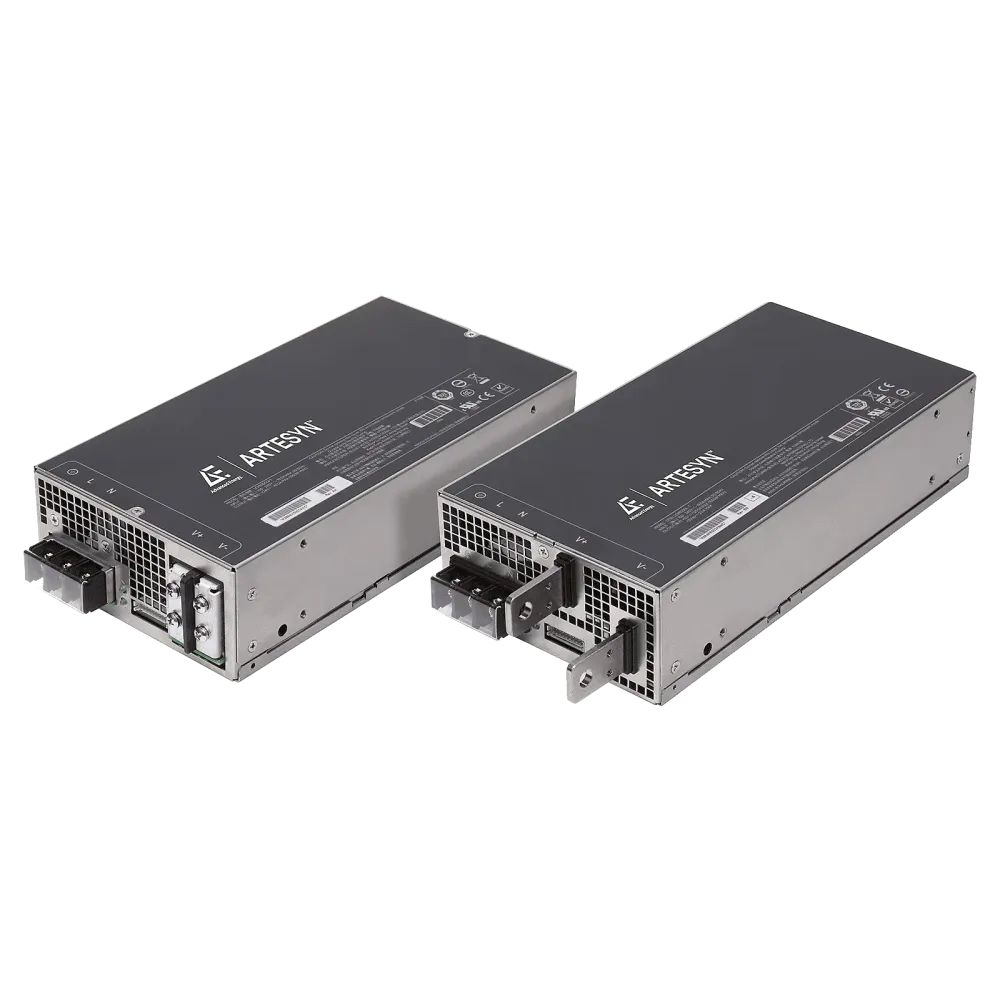

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.
Technical data
- 1500Watt output power
- Dimensions 254 x 132 x 61.7mm
- Industry/Medical Safety approval
- No power reduction with 85Vac input
- Ambient temperature -40°C..70°C with derating
- Optional 5Vdc @2A standby
- Efficiency 89%
- Variable speed "Smart Fans"
- DSP controlled
- Option conformal coating
- Output voltage adjustable +/-10%
- Margin programming
- ORing FET
- Warranty 3 years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 48 V |
| Minimum VDC setting range | 40.8 V |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| Maximum VDC setting range | 52.8 V |
| Control signals | Remote sense |
| Power | 1584 W |
| Height | 61.7 mm |
| Width | 132 mm |
| Manufacturer | Artesyn |
| Length | 254 mm |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Input voltage range (VAC) | 90-264 V |
| Status signals | AC OK signal, DC OK signal |
