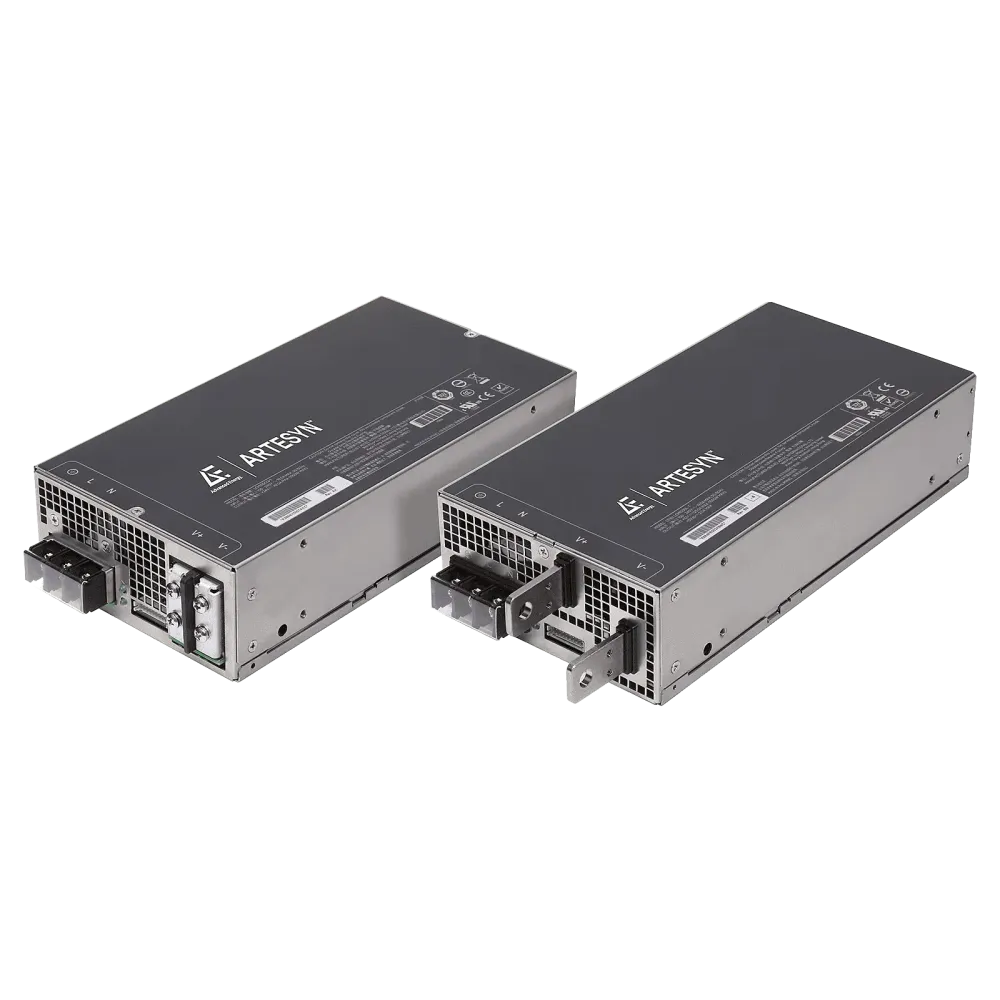

1596W medical power supply 12Vdc/133A

Delivery at your place between May 22 and Jun 26 2025

Add to cart

About the product

The Artesyn LCM family 300/600/1000/1500/3000Watt from Advanced Energy covers a very wide range of AC/DC embedded power requirements. This product family has no power derating over the entire input range of 85..264Vac.

Technical data

1500Watt output power
Dimensions 254 x 132 x 61.7mm
Industry/Medical Safety approval
No power reduction with 85Vac input
Ambient temperature -40°C..70°C with derating
Optional 5Vdc @2A standby
Efficiency 89%
Variable speed "Smart Fans"
DSP controlled
Option conformal coating
Output voltage adjustable +/-10%
Margin programming
ORing FET
Warranty 3 years
Manufacturer Artesyn

Product specifications

Output voltage (VDC)	12 V
Additional functions	5VDC auxiliary output, switchable in parallel
Minimum VDC setting range	10.8 V
Maximum VDC setting range	13.2 V
Control signals	Remote sense
Height	61.7 mm
Width	132 mm
Power	1596 W
Manufacturer	Artesyn
Length	254 mm
Protection class	Class I
Application	ITE/AV, Medical
Input voltage range (VAC)	90-264 V
Status signals	AC OK signal, DC OK signal
