About the product

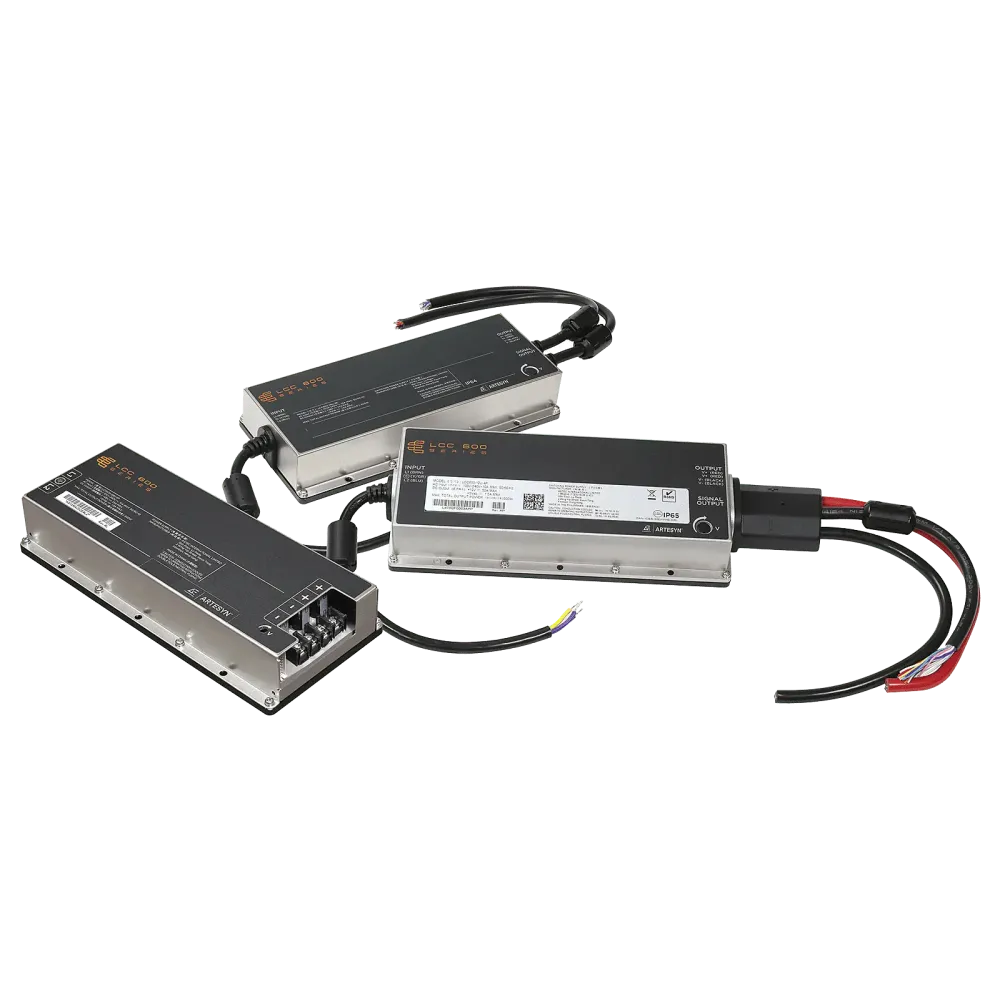

Artesyn's LCC600 series from Advanced Energy consists of 4 voltage variants with an output voltage of 12V, 28V, 36V or 48Vdc and is fully conduction cooled. Each variant also has a 5Vdc standby output that can supply up to 1.5A. Rated at 600Watt, these power supplies feature a thermal baseplate and are capable of delivering full output power over a wide operating temperature range of -40°..+85°C. The main output is adjustable for maximum application flexibility. The 48Vdc variant, for example, can be set from 44V..54Vdc and has a maximum current rating of 12.5A.
Technical data
- 600Watt output at elevated ambient temperature
- Wide ambient temperature range -40°C..+85°C with cooling plate
- Output voltagea adjustable
- Remote On/Off
- AC OK and DC OK signals
- 5Vdc standby
- Active current share
- Conduction cooled/fanless
- I2C / PMBus
- Medical and industrial safety approval
- Suitable for BF applications
- Active power factor correction
- Option IP65
- Option input 277Vac
- Warranty 2 years
- Manufacturer Artesyn
Product specifications
| Length | 228 mm |
| Status signals | AC OK signal, DC OK signal |
| Control | PMBus |
| Minimum VDC setting range | 32 V |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| Control signals | Remote sense |
| Height | 39.8 mm |
| Width | 101 mm |
| Manufacturer | Artesyn |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Power | 600 W |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 36 V |
| Maximum VDC setting range | 38 V |
