About the product

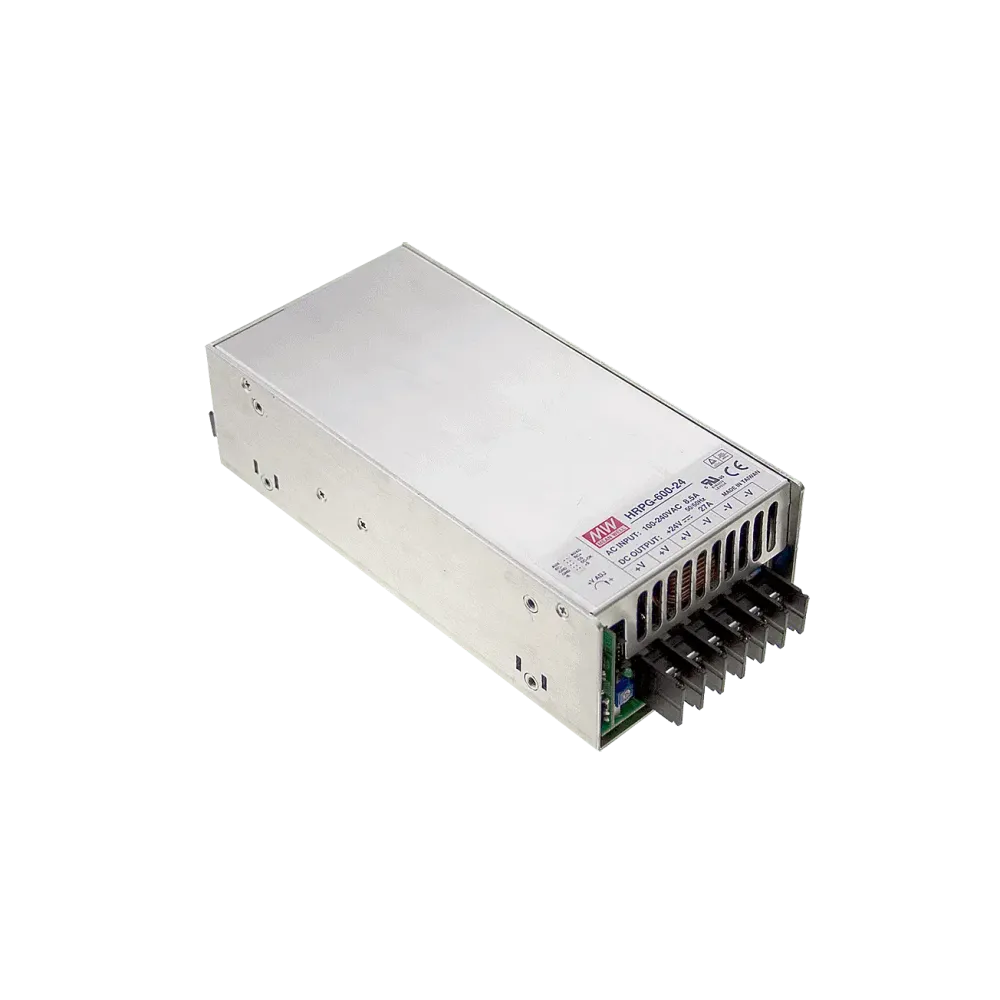

HRP-600N3-48 can deliver 3.5 times the power in the short term. This can cover high starting currents when starting motors or electromechanical loads.
Technical data
- Input voltage 85 to 264Vac
- Remote Sense function
- DC OK signal
- 350% peak power
- Air cooling with integrated fan
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Approved for an operating altitude of up to 5000m
- Dimensions 218 x 105 x 61.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 40.8 V |
| Maximum VDC setting range | 55.2 V |
| Control signals | Remote sense |
| Power | 624 W |
| Length | 218 mm |
| Width | 105 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-264 V |
| Height | 61.5 mm |
| Output voltage (VDC) | 48 V |
| Additional functions | Peak Power |
