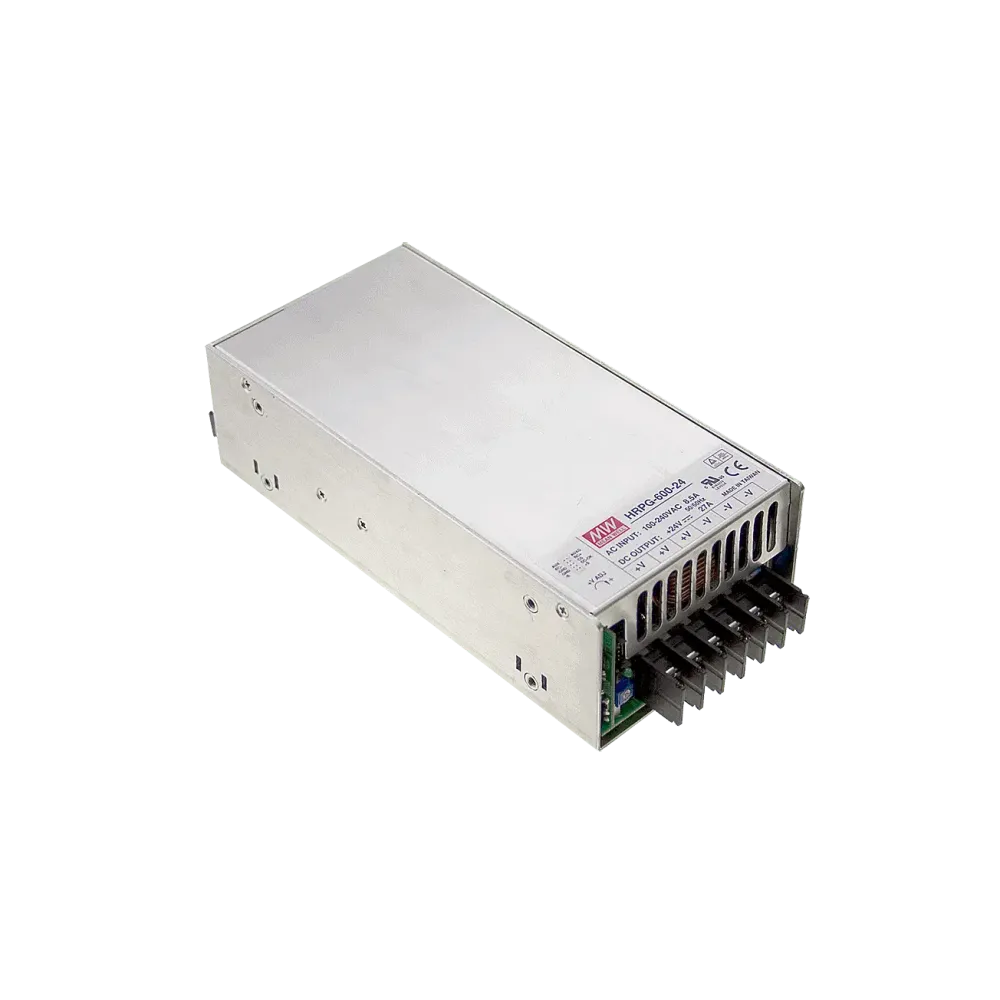

636W power supply 12V/53A, 350% peak power

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

HRP-600N3-12 can deliver 3.5 times the power in the short term. This can cover high starting currents when starting motors or electromechanical loads.

Technical data

Input voltage 85 to 264Vac
Remote Sense function
DC OK signal
350% peak power
Air cooling with integrated fan
Operating temperature range from -40°C to +70°C
Withstands surge voltages up to 300Vac for up to 5 seconds
Approved for an operating altitude of up to 5000m
Dimensions 218 x 105 x 61.5mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Control signals	Remote sense
Minimum VDC setting range	10.2 V
Maximum VDC setting range	13.8 V
Power	363 W
Length	218 mm
Width	105 mm
Status signals	DC OK signal
Protection class	Class I
Application	ITE/AV
Input voltage range (VAC)	85-264 V
Height	61.5 mm
Output voltage (VDC)	12 V
Additional functions	Peak Power
