About the product

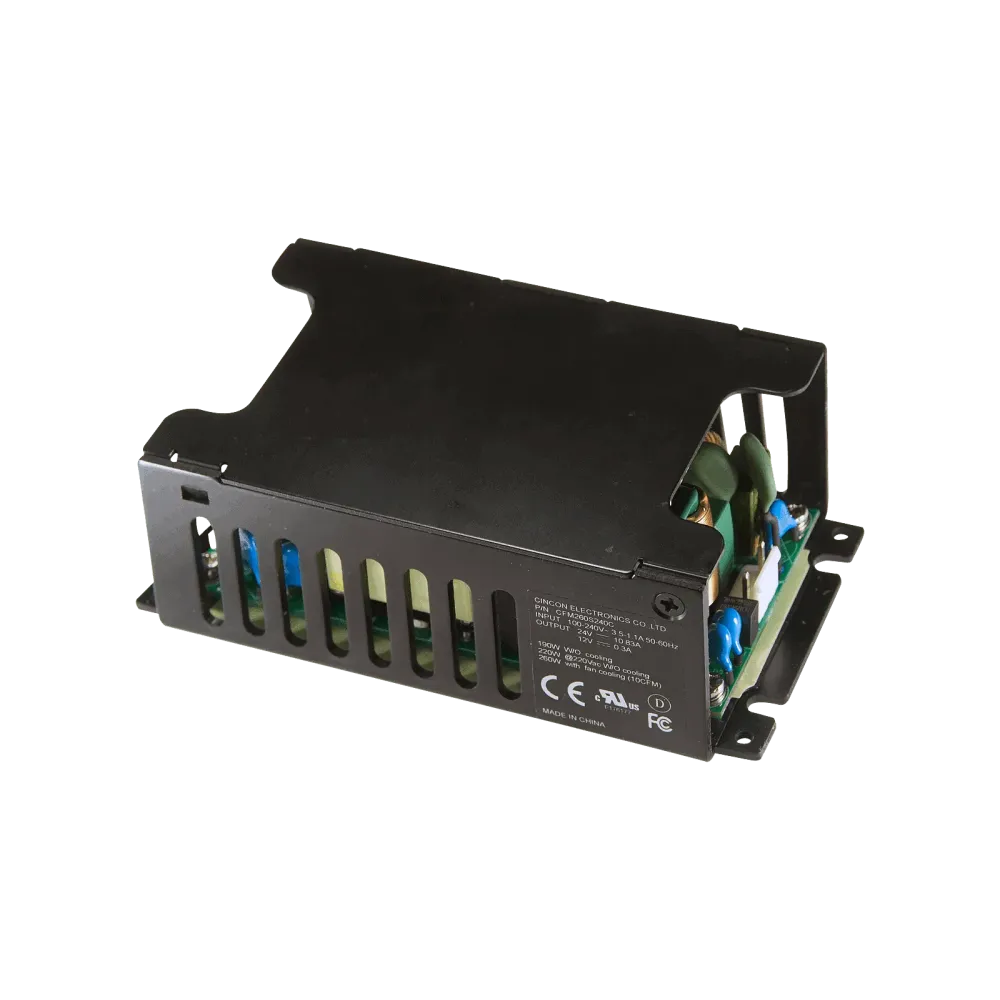

CFM260S240C is Cincon's new ITE AC/DC power supply with high power density, for protection class I applications with protective earth. It has safety approvals in accordance with IEC/UL/EN62368-1 and complies with IEC/EN60335-1.
Technical data
- Universal input range 85.. 264Vac
- High efficiency 93.5%
- No load power consumption <0.2 Watt
- 12V fan output
- Continuous short-circuit protection
- Overtemperature protection
- Operating altitude 5000m
- Complies with EN55032 (Class B)
- IEC/EN/UL62368-1 approval
- Complies with IEC/EN60335-1
Product specifications
| Output voltage (VDC) | 24 V |
| Maximum VDC setting range | 25.2 V |
| Additional functions | 12VDC auxiliary output |
| Length | 116.8 mm |
| Power | 220 W |
| Height | 40.5 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-264 V |
| Width | 64 mm |
| Manufacturer | Cincon |
| Minimum VDC setting range | 22.8 V |
