About the product

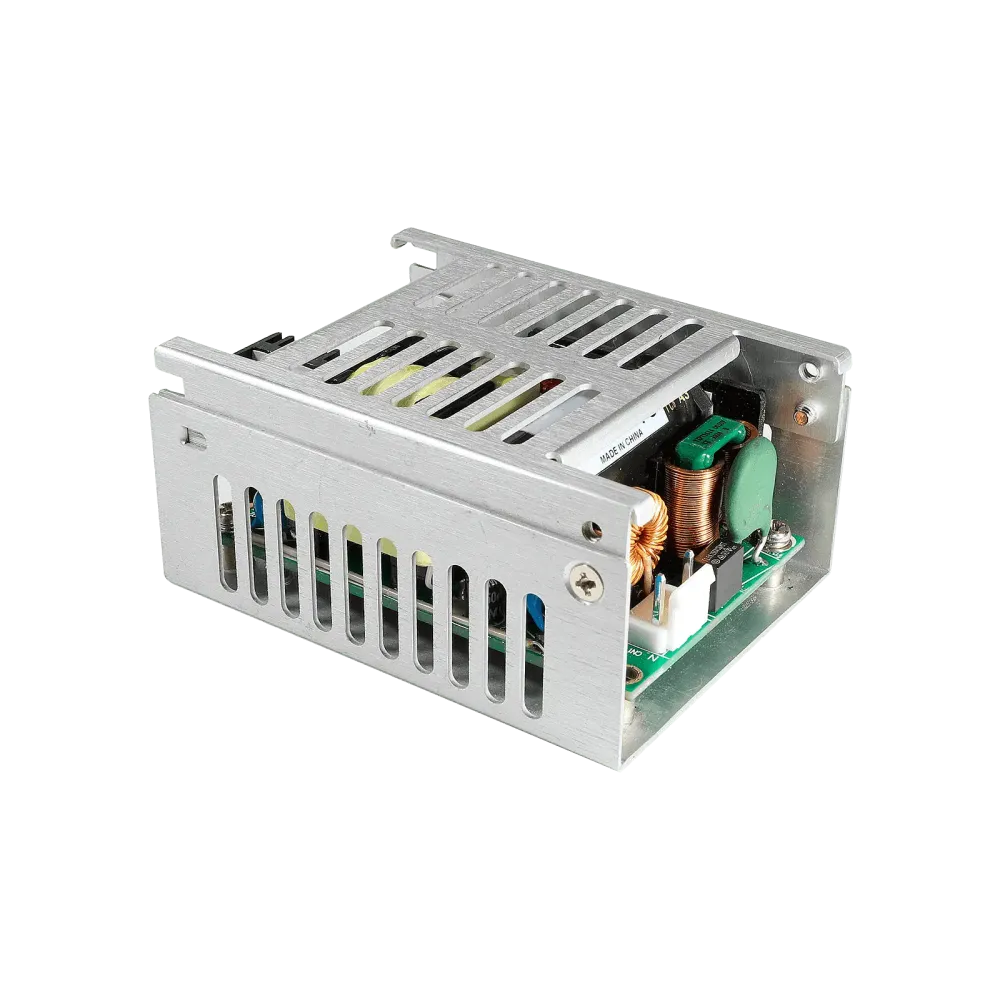

CFM81S150-CA is a Class I or Class II AC/DC power supply unit with high power density and compact dimensions. Version in housing.
Technical data
- Universal input range 90.. 264Vac
- High efficiency 91%
- No load power consumption <0.3 Watt
- Peak load (2 times rated current (note7))
- Continuous short-circuit protection
- Complies with EN60335-1
- Suitable for protection class I and protection class II applications
- Complies with IEC/EN/UL62368-1
- Complies with EN55032 Class B and CISPR/FCC Class B
Product specifications
| Input voltage range (VAC) | 90-264 V |
| Maximum VDC setting range | 15.8 V |
| Minimum VDC setting range | 14.2 V |
| Application | Budget, ITE/AV |
| Length | 81.28 mm |
| Protection class | Class I, Class II |
| Height | 40 mm |
| Manufacturer | Cincon |
| Output voltage (VDC) | 15 V |
| Power | 80 W |
| Width | 62 mm |
| Additional functions | Peak Power |
