2898W Power supply 115V/25.2A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

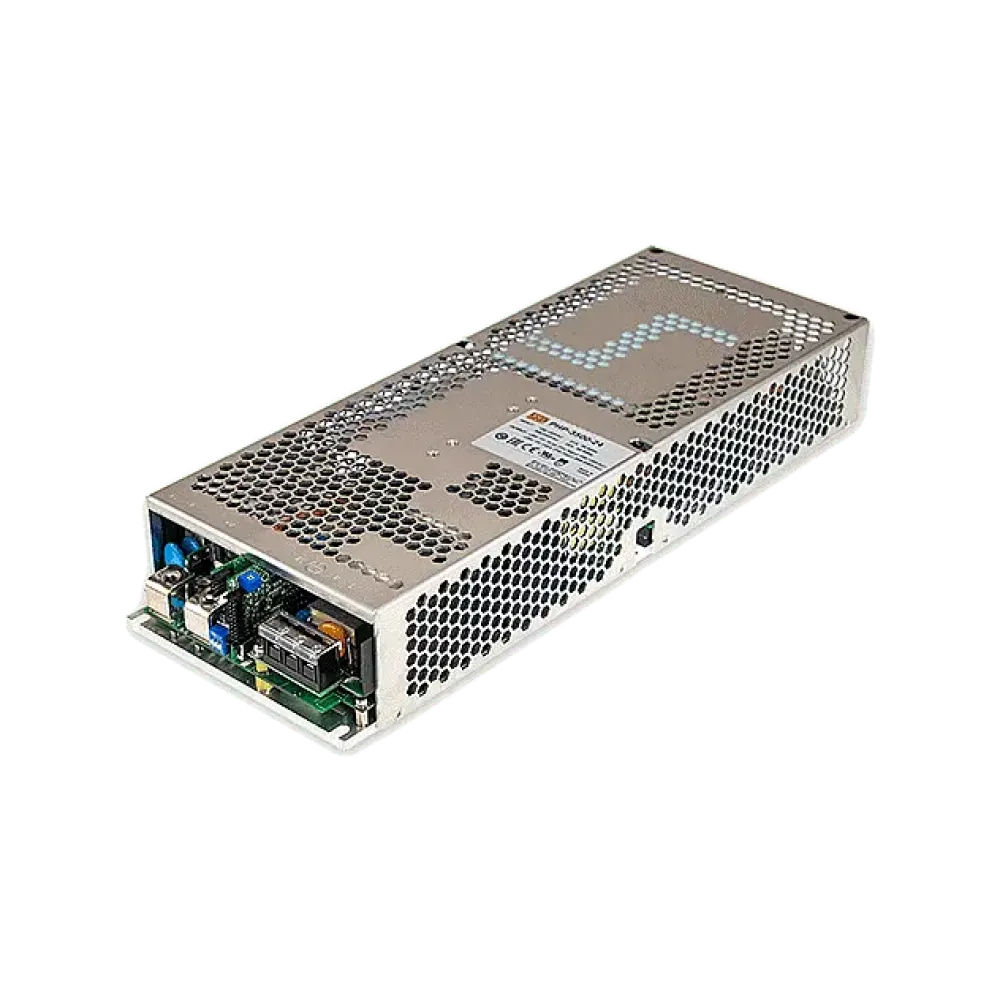

The PHP-3500-115 is a compact, fanless power supply designed for liquid cooling. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, laser applications and much more.

Technical data

Input voltage 90 to 264Vac
High efficiency up to 96
DC OK Relay contact
Remote ON/OFF
2200W with conduction cooling (without fan or water cooling)
Water cooling plate optionally available
Operating temperature range from -30°C to +70°C
Overvoltage category 3 up to 3000 meters altitude
Parallel switchable up to 14kW
PMbus integrated, CANBus optional
Dimensions 380 x 141.4 x 60mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Maximum VDC setting range	160 V
Control	PMBus
Additional functions	12VDC auxiliary output, switchable in parallel
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Power	2898 W
Output voltage (VDC)	115 V
Width	141.4 mm
Length	380 mm
Status signals	DC OK signal
Protection class	Class I
Application	ITE/AV
Height	60 mm
Input voltage range (VAC)	90-264 V
Minimum VDC setting range	66.5 V
