About the product

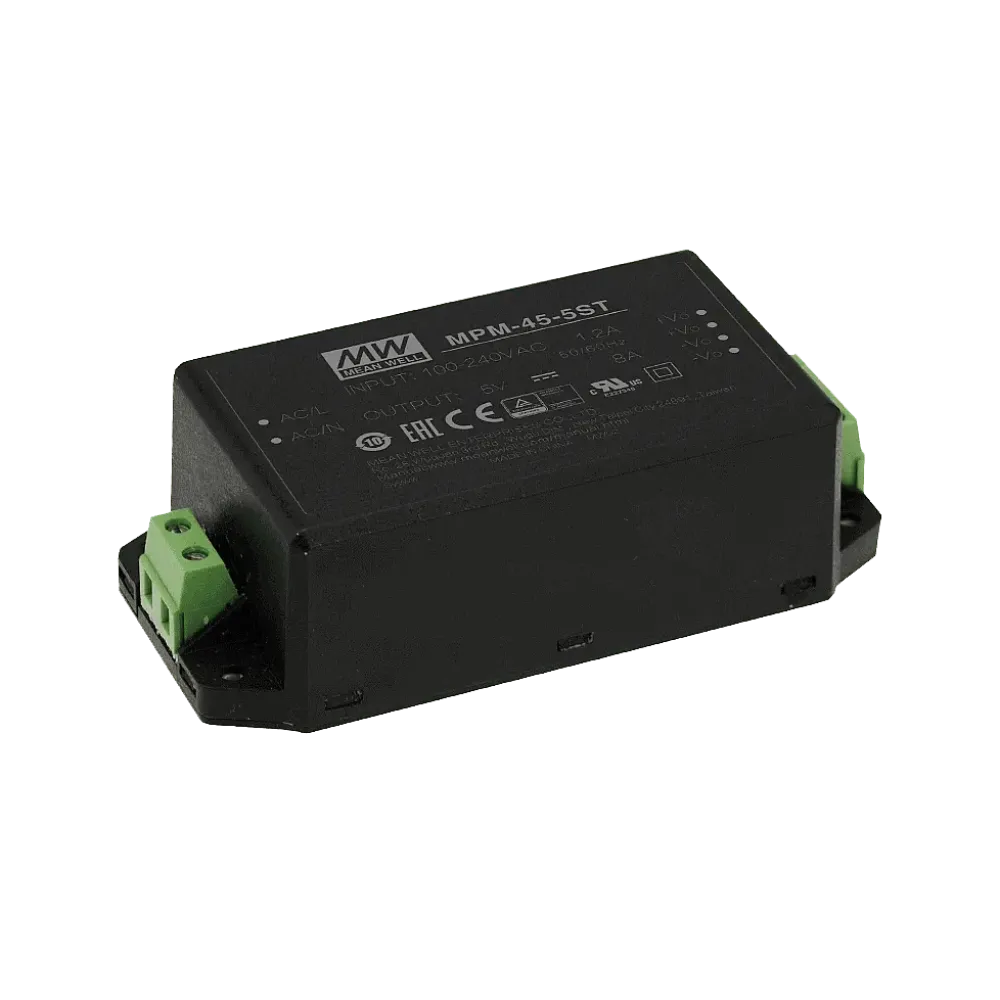

The MPM-45-48ST is an ultra-compact AC-DC power supply unit with medical approval for chassis mounting in an encapsulated housing.
Technical data
- Input voltage 80 to 264Vac
- Peak power 110% of the nominal power for 10 seconds
- No load power consumption 0.1W
- Very low leakage current (100µA)
- Screw connections In/Out
- Protection class II Device without earth connection
- Wide temperature range from -30 to +80°C
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Operating altitude up to 4000 meters
- Short-circuit, overload, overvoltage and overtemperature protection
- Medical approval according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- Dimensions 109 x 52 x 33.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Output voltage (VDC) | 48 V |
| Power | 45 W |
| Input voltage range (VAC) | 80-264 V |
| Length | 109 mm |
| Width | 52 mm |
| Protection class | Class II |
| Application | Household, Medical |
| Height | 33.5 mm |
