About the product

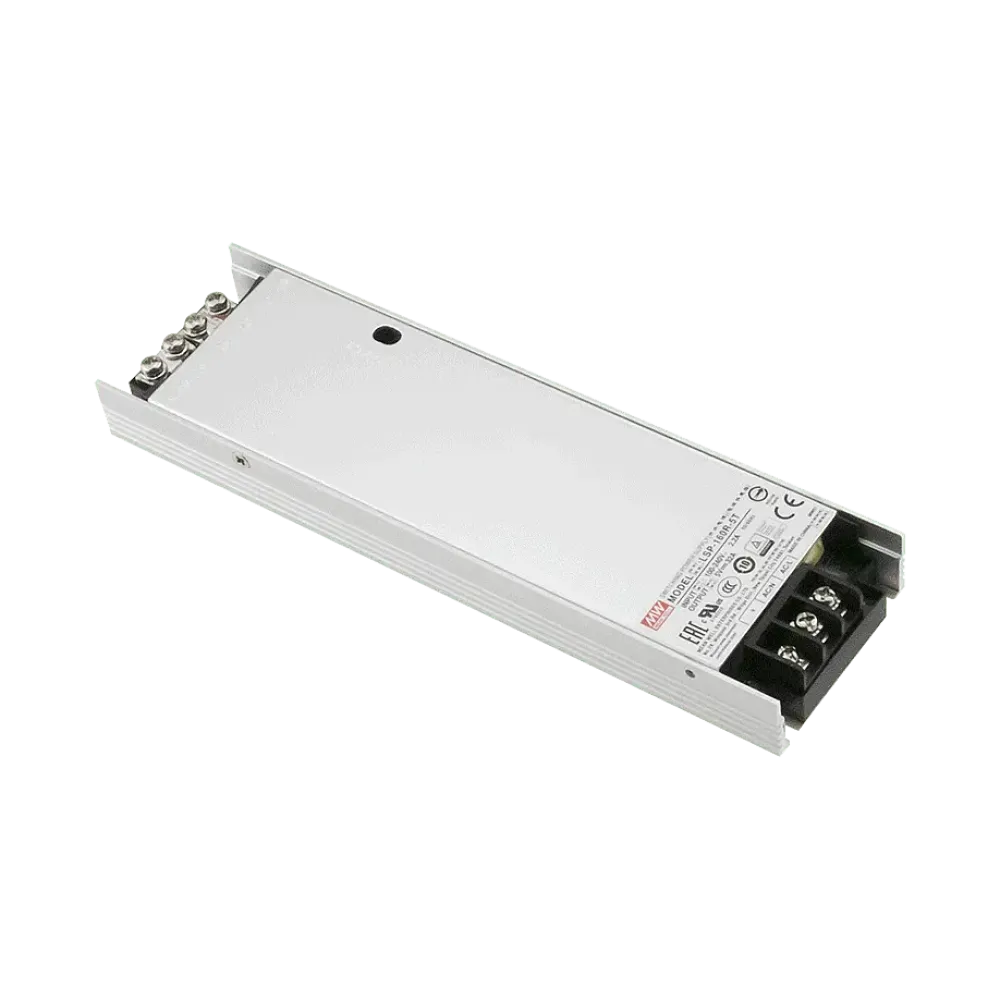

LSP-160-12T is a flat power supply unit in a housing with a height of only 20mm.
Technical data
- Input voltage 100 to 264Vac
- Very slim and flat design
- Half potted
- with active PFC
- DC OK signal
- Operating temperature range from -30°C to +70°C
- Holds surge voltages up to 300Vac for up to 5 seconds
- Approved for operation up to 5000 meters altitude
- Dimensions 194 x 55 x 20mm (L x W x H)
Product specifications
| Height | 20 mm |
| Minimum VDC setting range | 11.4 V |
| Input voltage range (VAC) | 100-264 V |
| Length | 194 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Width | 55 mm |
| Power | 200 W |
| Output voltage (VDC) | 12 V |
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 12.6 V |
