About the product

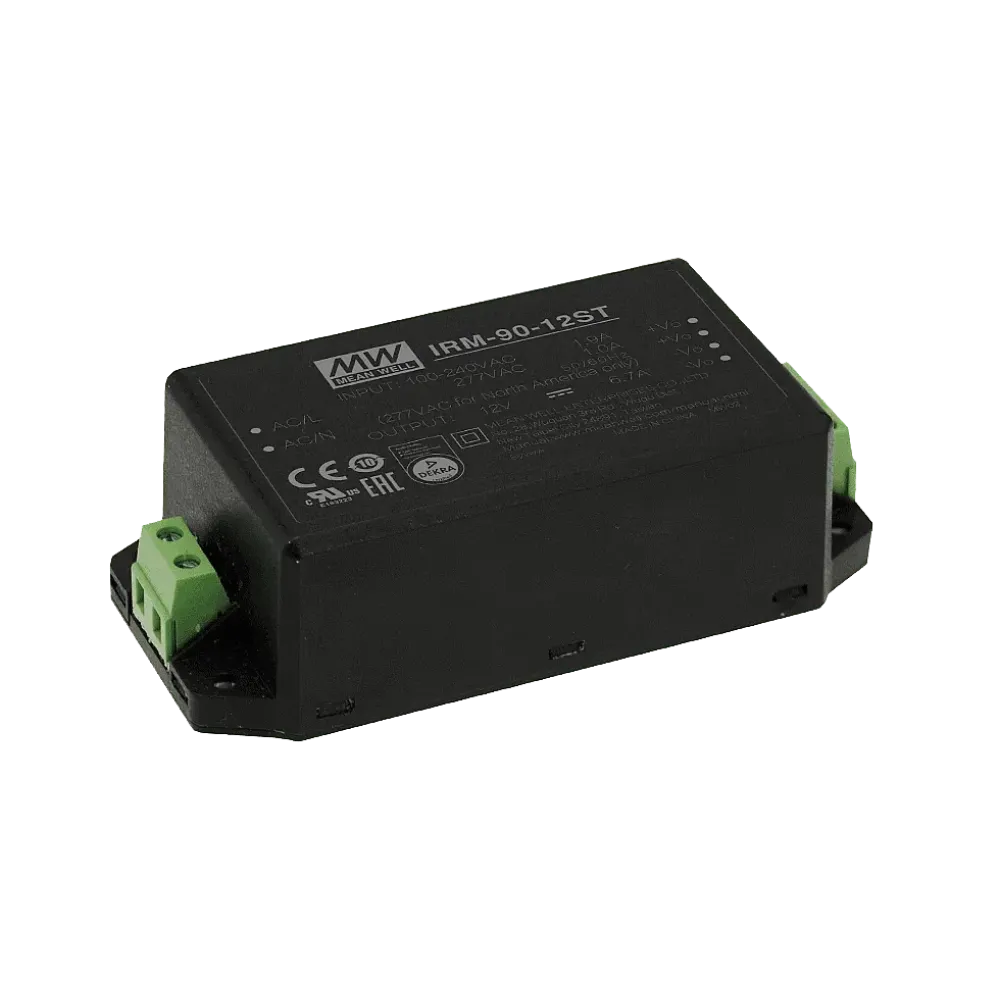

IRM-90-12ST is a Class II AC/DC power supply unit for chassis mounting.
Technical data
- Input voltage 80 to 305Vac
- No load power consumption 0.21W
- Very compact design
- Screw connections In/Out
- EN55032 Class B without additional components
- Overvoltage category III
- Protection class II Device without earth connection
- Short-circuit, overload and overvoltage protection
- Dimensions 109 x 52 x 33.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Output voltage (VDC) | 12 V |
| Power | 80 W |
| Length | 109 mm |
| Width | 52 mm |
| Protection class | Class II |
| Height | 33.5 mm |
| Input voltage range (VAC) | 80-305 V |
| Application | Budget, ITE/AV |
