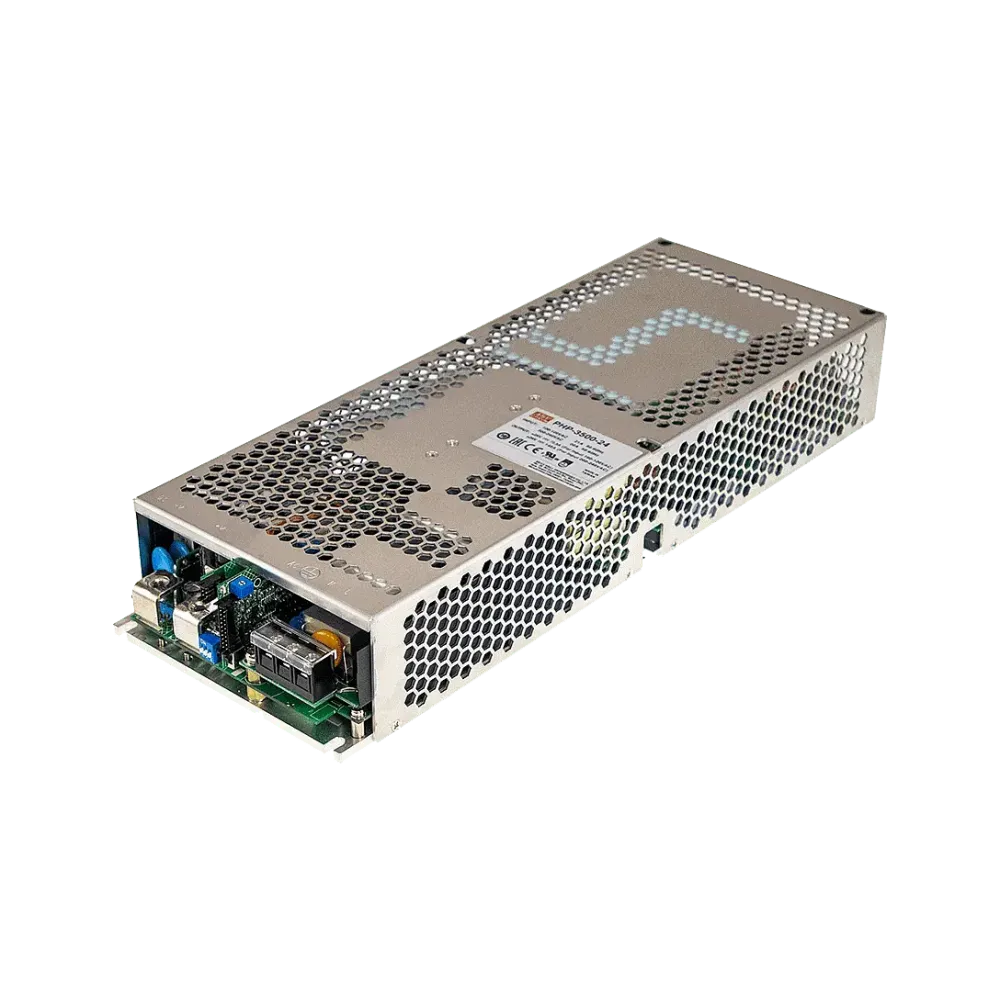

3500W power supply unit 48V/73A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The PHP-3500-48 is a compact, fanless power supply designed for liquid cooling. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, laser applications and much more.

Technical data

Input voltage 90 to 264Vac
High efficiency up to 96
DC OK Relay contact
Remote ON/OFF
2200W with conduction cooling (without fan or water cooling)
Water cooling plate optionally available
Operating temperature range from -30°C to +70°C
Overvoltage category 3 up to 3000 meters altitude
Parallel switchable up to 14kW
PMbus integrated, CANBus optional
Dimensions 380 x 141.4 x 60mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Maximum VDC setting range	57.6 V
Minimum VDC setting range	24 V
Additional functions	12VDC auxiliary output, switchable in parallel
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Power	3504 W
Width	141.4 mm
Length	380 mm
Status signals	DC OK signal
Protection class	Class I
Application	ITE/AV
Height	60 mm
Input voltage range (VAC)	90-264 V
Output voltage (VDC)	48 V
Control	PMBus
