1008W power supply unit or charger 48V/21A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

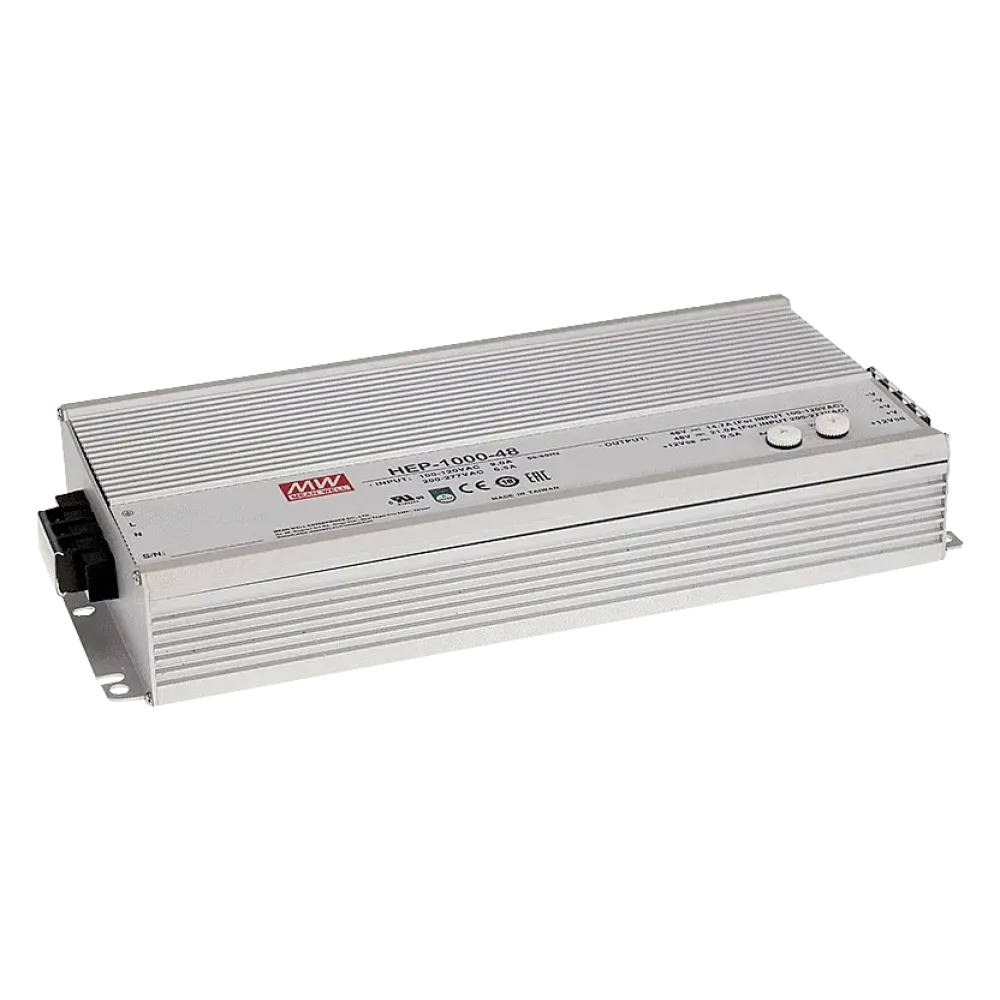

HEP-1000-48 is a 1000W power supply unit for harsh environmental conditions. With the built-in PMBus interface, the power supply unit can be integrated into a system or programmed as a charger using SBP-001.

Technical data

Input voltage 90 to 305Vac
High efficiency up to 96
Very robust design with a long service life
Fully encapsulated in aluminum housing
Suitable for use in harsh environments with high dust density, humidity, vibration
Operating temperature range from -55°C to +70°C
Built-in PMBus interface, optionally available with CANbus
Built-in charger function, adjustable via Smart Battery programmer SBP-001 or with PMBus
Vibration test up to 10G
Dimensions 310 x 144 x 48.5mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Control	PMbus, Smart Charger Programmer
Minimum VDC setting range	24 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Additional functions	12VDC auxiliary output
Power	1008 W
Status signals	DC OK signal
Protection class	Class I
Application	ITE/AV
Length	310 mm
Height	48.5 mm
Width	144 mm
Input voltage range (VAC)	90-305 V
Output voltage (VDC)	48 V
Maximum VDC setting range	60 V
