About the product

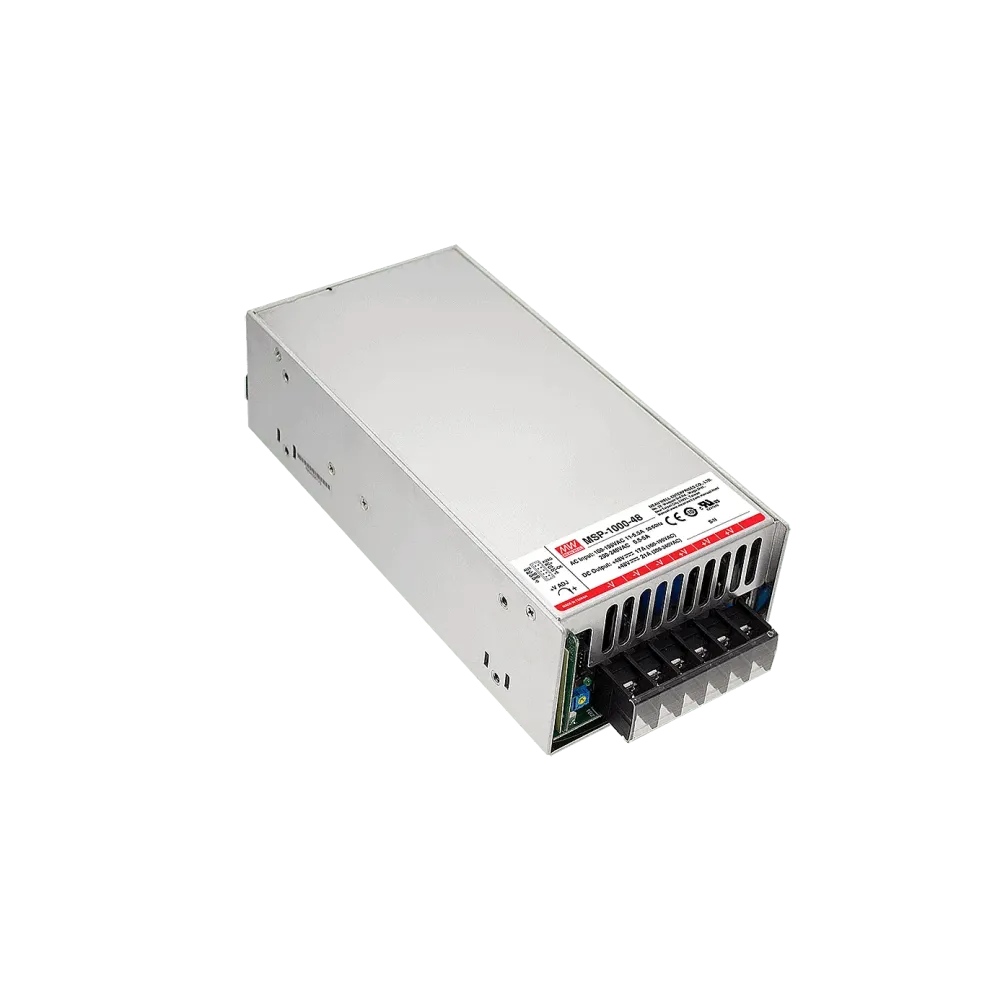

MSP-1000-12 is a 1000W power supply unit in a housing for medical applications. The power supply unit is cooled by a speed-controlled fan and can be used at ambient temperatures up to 70°C.

Technical data

Input voltage 90 to 264Vac
with active PFC
Remote On/Off
Medical approval 2xMOPP level
Suitable for BF applications with appropriate precautions in the system
Standby 5V@0.3A
Remote Sense function
Power consumption at no load <0.75W
Current sharing up to 4000W (3+1)
Air cooling with integrated fan
Operating temperature range from -40°C to +70°C
Withstands surge voltages up to 300Vac for up to 5 seconds
Dimensions 218 x 105 x 63.5mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Minimum VDC setting range	11 V
Control signals	Remote ON/OFF, Remote Sense
Additional functions	5VDC auxiliary output, switchable in parallel
Height	63.5 mm
Length	218 mm
Width	105 mm
Power	960 W
Application	Medical
Status signals	DC OK signal
Protection class	Class I
Input voltage range (VAC)	90-264 V
Output voltage (VDC)	12 V
Maximum VDC setting range	14 V
