About the product

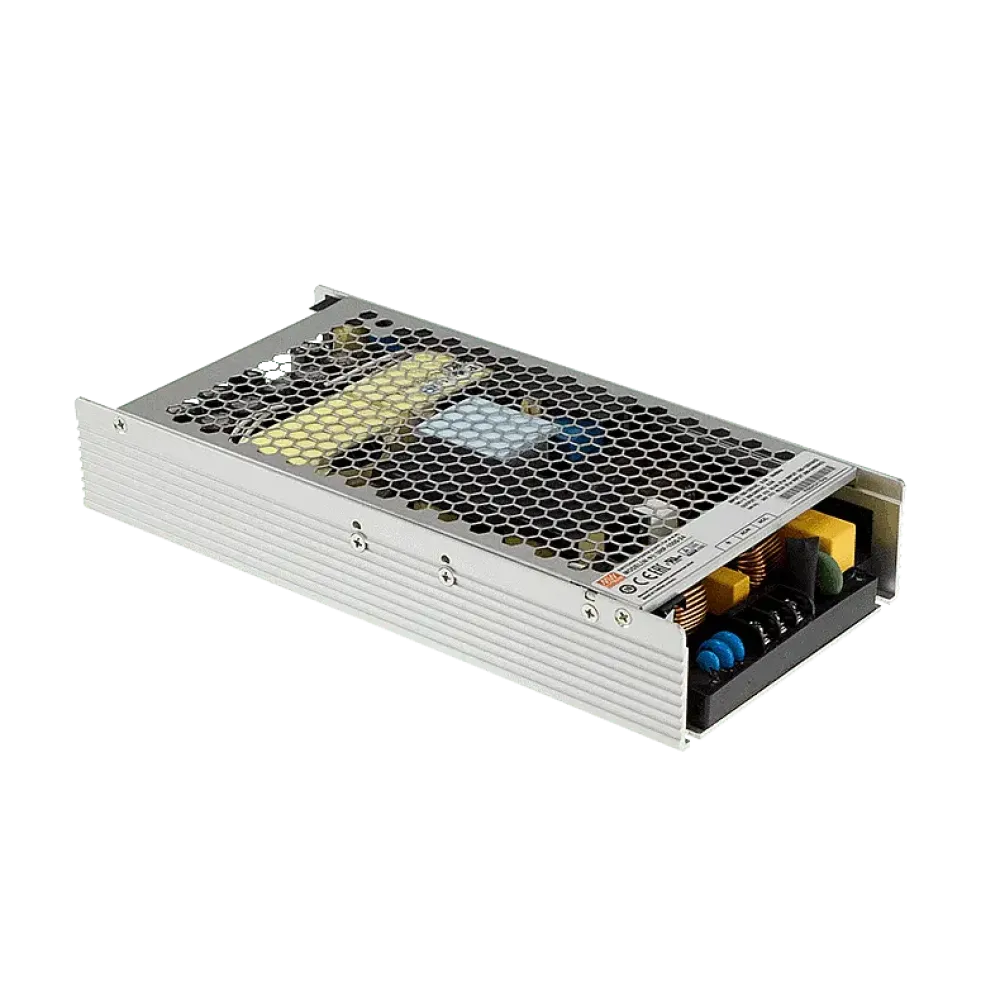

The UHP-1000-48 is a slim, fanless power supply unit in a housing with a height of just 41 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- DC OK Relay contact
- Remote ON/OFF
- Full load operation with conduction cooling (without fan)
- Operating temperature range from -30°C to +70°C
- Holds surge voltages up to 300Vac for up to 5 seconds
- Approved for operation up to 5000 meters altitude
- Dimensions 240 x 115 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 24 V |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF |
| Application | Budget, ITE/AV |
| Additional functions | 12VDC auxiliary output |
| Length | 240 mm |
| Width | 115 mm |
| Power | 1008 W |
| Status signals | DC OK signal |
| Protection class | Class I |
| Height | 41 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Maximum VDC setting range | 57.6 V |
