720W power supply unit 12V/60A

Delivery at your place between May 22 and Jun 26 2025

Add to cart

About the product

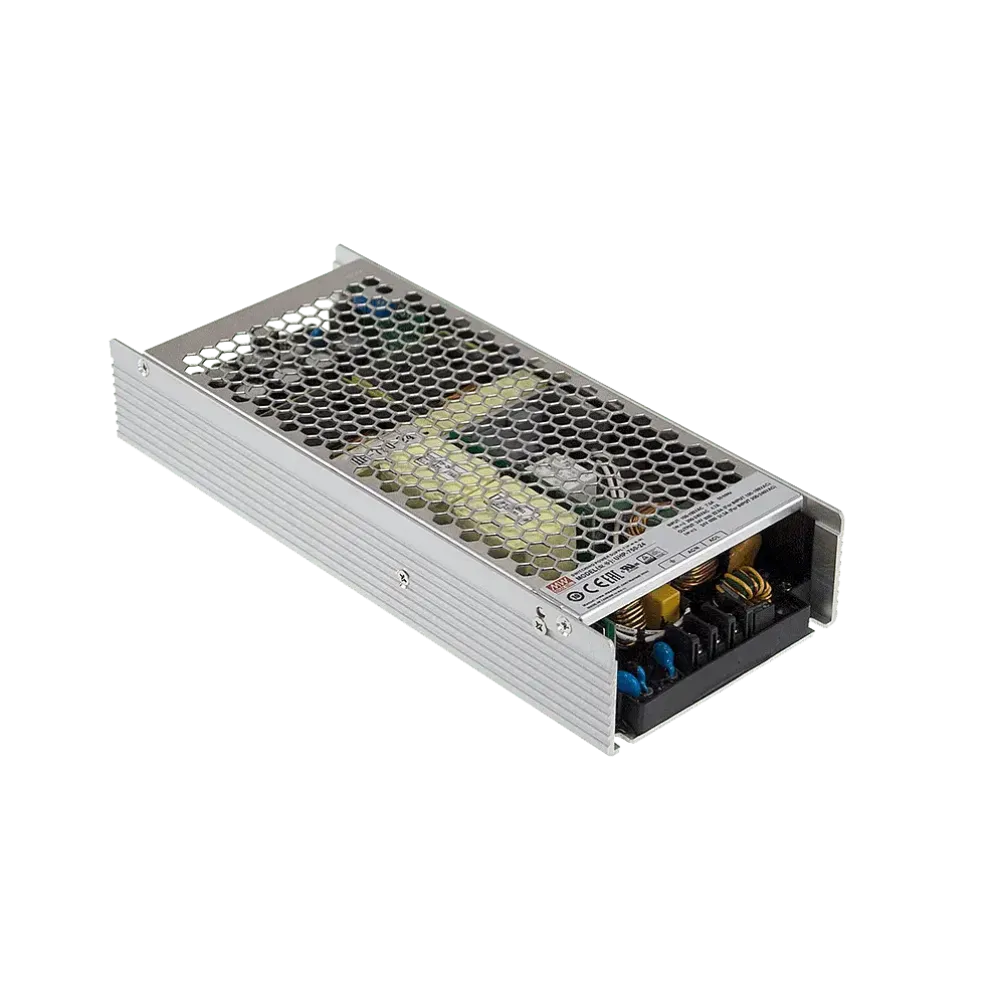

The UHP-750-12 is a slim, fanless power supply unit in a housing with a height of just 41 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.

Technical data

Input voltage 90 to 264Vac
with active PFC
DC OK Relay contact
Full load operation with conduction cooling (without fan)
Operating temperature range from -30°C to +70°C
Holds surge voltages up to 300Vac for up to 5 seconds
Approved for operation up to 5000 meters altitude
Dimensions 237 x 100 x 41mm (L x W x H)

Product specifications

Width	100 mm
Minimum VDC setting range	12 V
Application	Budget, ITE/AV
Length	237 mm
Protection class	Class I
Status signals	DC OK relay contact
Height	41 mm
Power	720 W
Input voltage range (VAC)	90-264 V
Output voltage (VDC)	12 V
Manufacturer	MEAN WELL
Maximum VDC setting range	14.4 V
