About the product

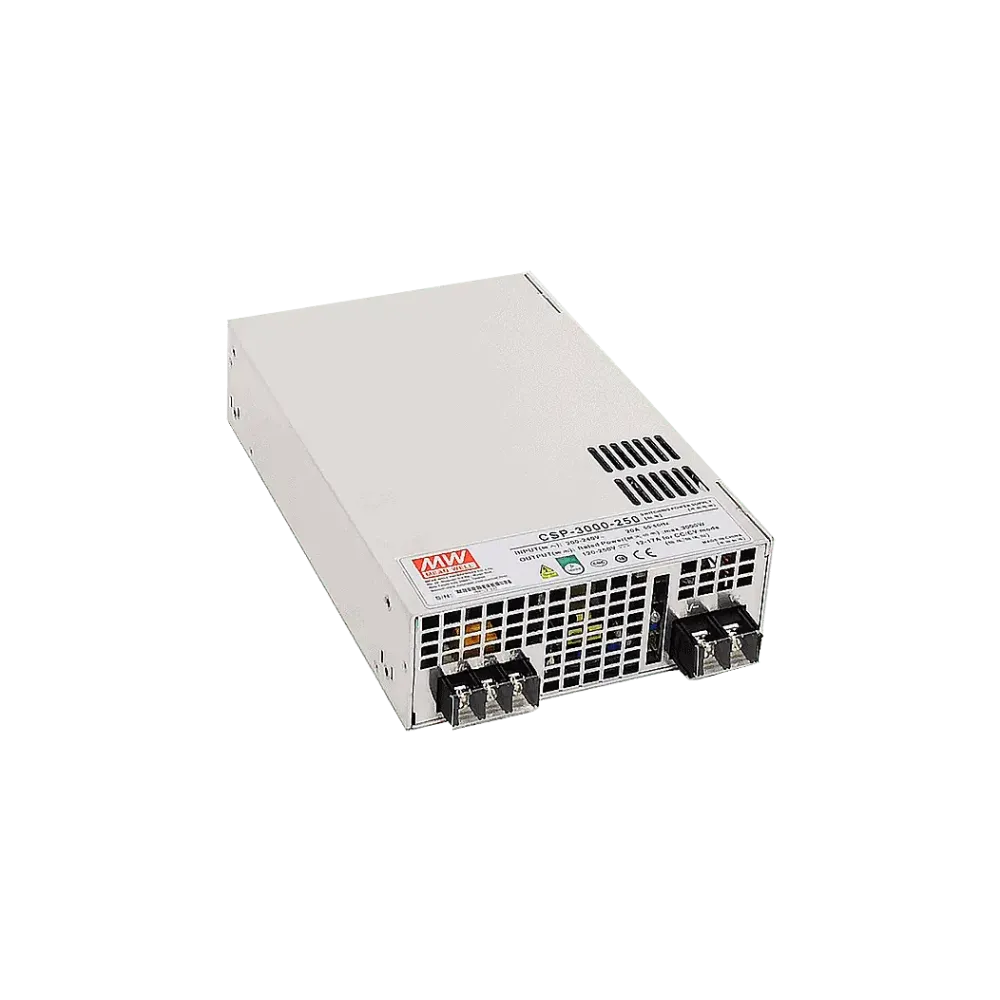

CSP-3000-120 is a 3000W AC/DC converter with high output voltage. The ability to control the constant current limit makes this series particularly suitable for laser applications, UV curing and as a charger.
Technical data
- Input voltage 180 to 264Vac
- with active PFC
- High efficiency of 93%
- Voltage and current programmable
- Active current sharing up to 7200W (2×1)
- Remote ON/OFF and Power OK signal
- Auxiliary output of 12V/0.4A
- Operating temperature range from -30°C to +70°C
- Dimensions 278 x 177.8 x 63.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 120 V |
| Additional functions | 12VDC auxiliary output, switchable in parallel |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF |
| Output voltage (VDC) | 120 V |
| Width | 177.8 mm |
| Height | 63.5 mm |
| Power | 3000 W |
| Length | 278 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 180-264 V |
| Minimum VDC setting range | 18 V |
