About the product

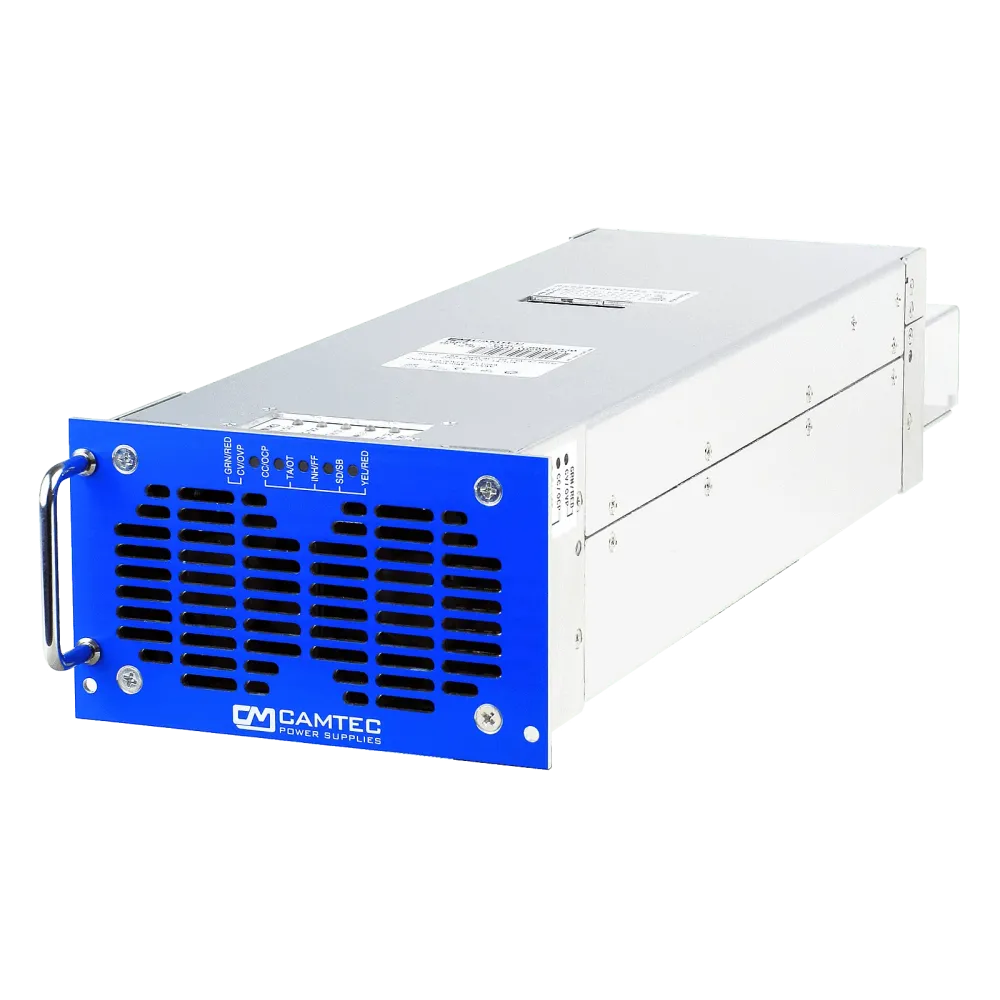

The Camtec CPS-EX3000 series are high-precision, programmable power supply units "Made in Germany". Thanks to the unique mechanical system, the power supply units can be installed flexibly in any desired mounting direction.
Technical data
- 3D-HD (3D Heat Dissipation) enables 360° mounting in three-dimensional space
- Interface Real-time C/V programming
- Interface real-time & real value C/V monitoring
- Reference voltage for self-programming
- CSB Current Share Bus
- Inhibit / Interlock for safety shutdown
- Remote shutdown
- Scythe operation
- Power Good Relay DC-OK
- Precise dynamics during load changes
- N+1 scalable up to over 100KW
- Efficiency 92-94%
- PFC power factor 0.99
- Steplessly controlled Pope fans
- Long service life under stress operation
- EMC compliant Conducted Class B, radiated Class A
- 19 Subframes 2U and 3 optional
- Dimensions 84×126.4x444mm
Product specifications
| Manufacturer | Camtec |
| Maximum VDC setting range | 150 V |
| Status signals | DC OK relay contact, voltage monitoring, current monitoring, temperature alarm |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense |
| Additional functions | 12VDC auxiliary output, switchable in parallel |
| Output voltage (VDC) | 110 V |
| Height | 84 mm |
| Width | 126.4 mm |
| Length | 444 mm |
| Power | 3000 W |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 184-264 V |
| Minimum VDC setting range | 90 V |
Data sheets
