About the product

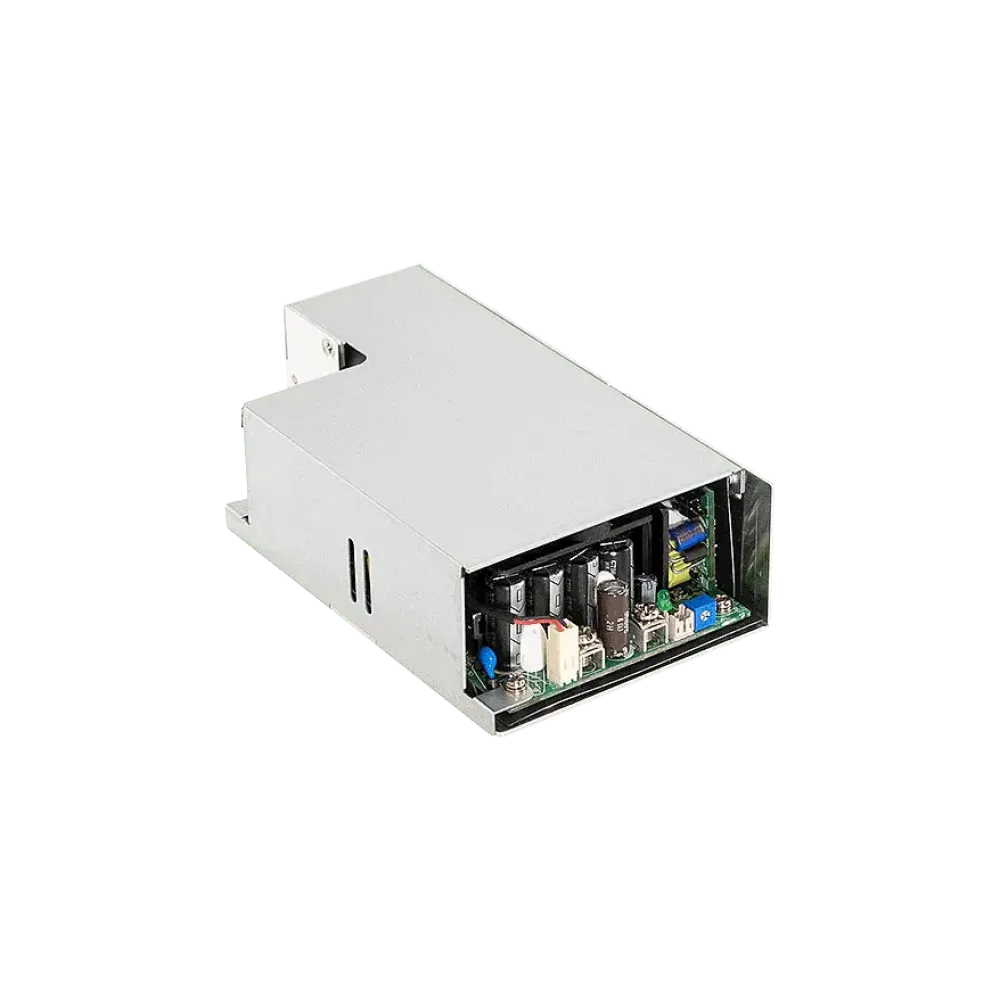

RPS-500-27-SF is a reliable medical power supply unit with a very high power density. Version with side fan
Technical data
- Input voltage 80 to 264Vac
- 500W with integrated fan
- Approved for Class I (with protective earth) applications
- No load power consumption 0.5W
- Efficiency up to 94
- Output signal for power o.k.
- Auxiliary output 5V / 0.6A
- Short-circuit, overload, overvoltage and temperature protection
- Approvals: ANSI/AAMI ES60601-1 and IEC/EN60601-1 with 2xMOPP level
- Dimensions 160 x 86 x 43mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 28.4 V |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
| Control signals | Remote ON/OFF, Remote Sense |
| Height | 43 mm |
| Power | 500 W |
| Output voltage (VDC) | 27 V |
| Status signals | DC OK signal |
| Application | Household, Medical |
| Protection class | Class I |
| Width | 86 mm |
| Length | 160 mm |
| Input voltage range (VAC) | 80-264 V |
| Minimum VDC setting range | 25.6 V |
