About the product

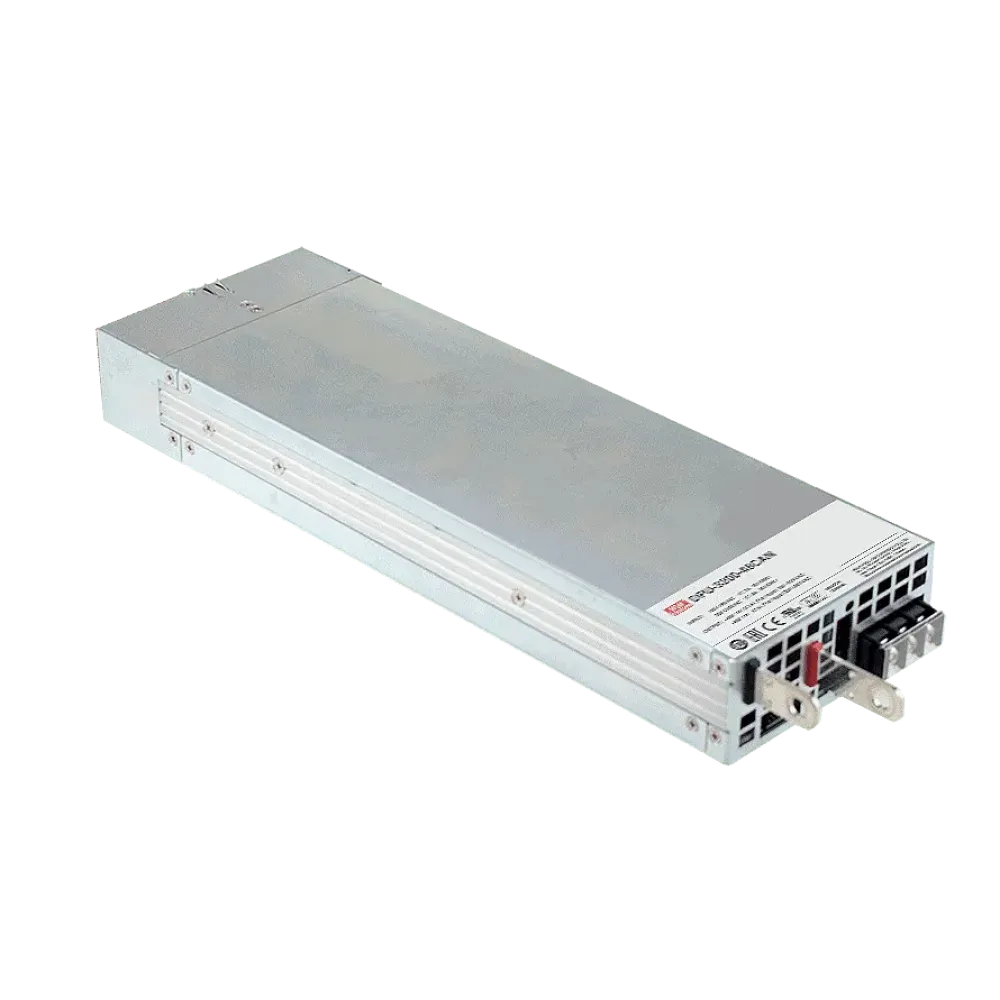

DPU-3200-48 is a 3.2kW power supply unit with a 1U profile and a very high power density. Equipped with numerous functions such as parallel function, remote ON-OFF, 5V and 12V auxiliary voltages, system integration is made easier.
Technical data
- Input voltage 90 to 264Vac (derating at input <180Vac)
- with active PFC
- Very high efficiency up to 94.5%
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuit 12V/0.8A and 5V/0.3A
- Output voltage can be trimmed between 50 - 125% using an external control signal
- Output current can be trimmed between 20 - 100% using an external control signal
- Current sharing (4+1) up to 16kW
- Alarm signal outputs (TTL open collector signal): DC OK, temperature alarm
- Operating temperature range from -30°C to +70°C (derating from +50°C)
- Optionally available with CANBUS or PMBUS
- Dimensions 325.8 x 107 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Status signals | DC OK signal, temperature alarm |
| Minimum VDC setting range | 24 V |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF |
| Power | 3216 W |
| Length | 325.8 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Width | 107 mm |
| Height | 41 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Maximum VDC setting range | 58.8 V |
