200W power supply 12V/16.7A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

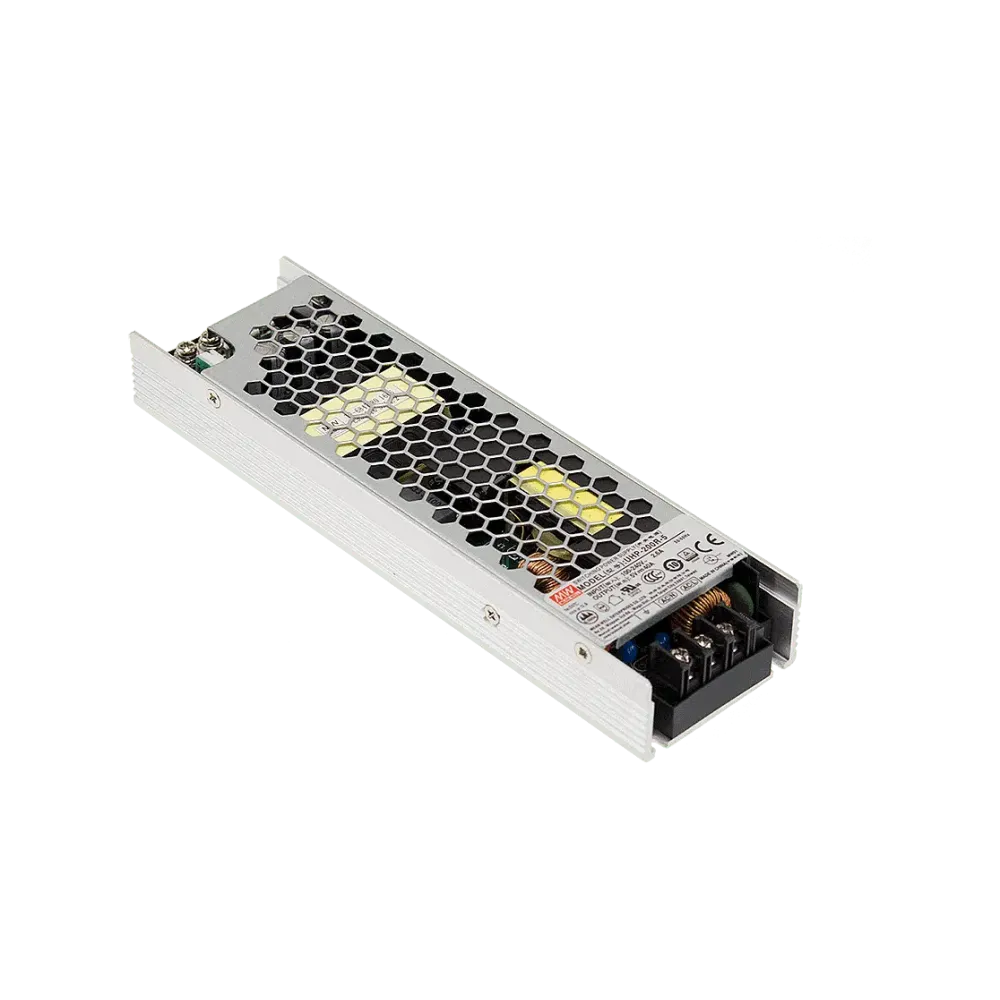

UHP-200-12 is a slim power supply unit in a housing with a height of just 26 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.

Technical data

Input voltage 90 to 264Vac
with active PFC
Operating temperature range from -30°C to +70°C
Holds surge voltages up to 300Vac for up to 5 seconds
Approved for operation up to 5000 meters altitude
Dimensions 194 x 55 x 26mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Minimum VDC setting range	11.4 V
Application	Budget, ITE/AV
Length	194 mm
Protection class	Class I
Width	55 mm
Height	26 mm
Input voltage range (VAC)	90-264 V
Power	200 W
Output voltage (VDC)	12 V
Maximum VDC setting range	12.6 V
