About the product

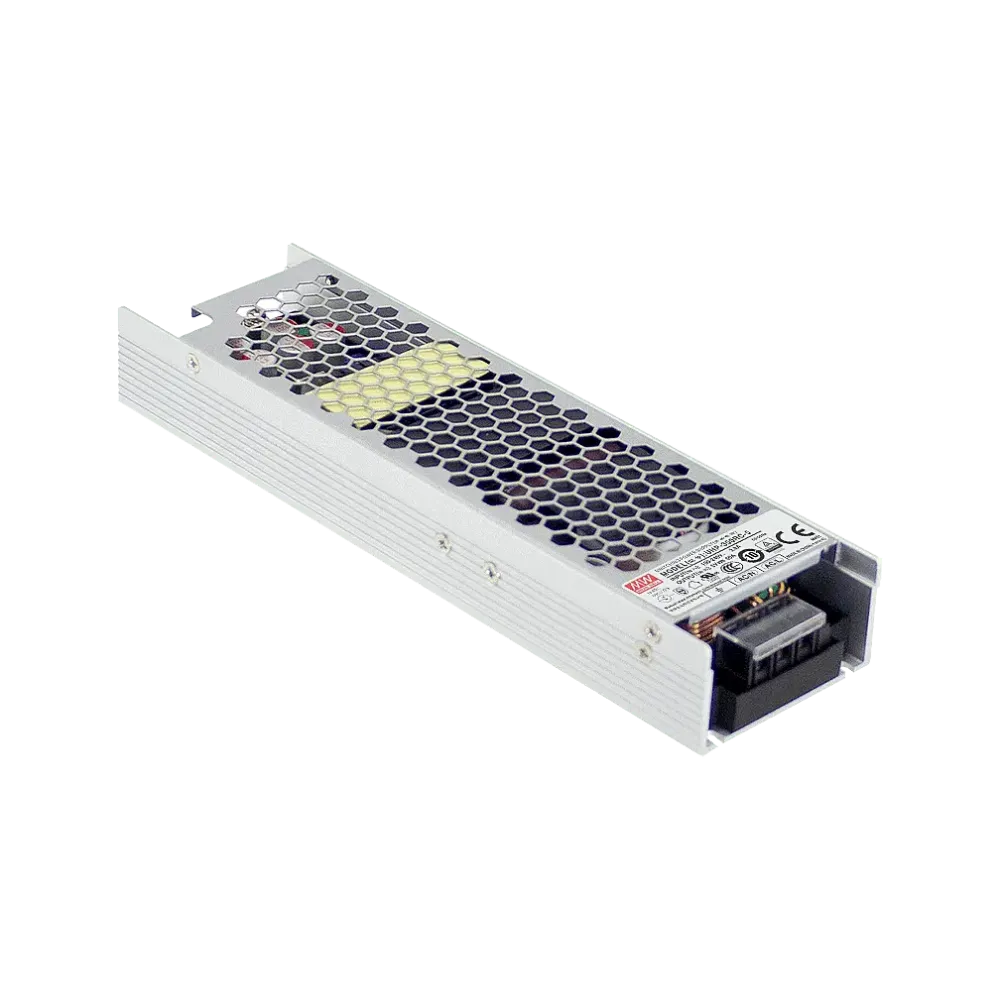

UHP-350R-15 is a slim power supply unit in a housing with a height of just 31 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more. With DC OK signal and redundancy function.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- With DC OK signal and redundancy function.
- Operating temperature range from -30°C to +70°C
- Holds surge voltages up to 300Vac for up to 5 seconds
- Approved for operation up to 5000 meters altitude
- Dimensions 220 x 62 x 31mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 15.8 V |
| Additional functions | Parallel switchable |
| Application | Budget, ITE/AV |
| Power | 351 W |
| Status signals | DC OK signal |
| Protection class | Class I |
| Height | 31 mm |
| Output voltage (VDC) | 15 V |
| Width | 62 mm |
| Input voltage range (VAC) | 90-264 V |
| Length | 220 mm |
| Minimum VDC setting range | 14.3 V |
Data sheets
