About the product

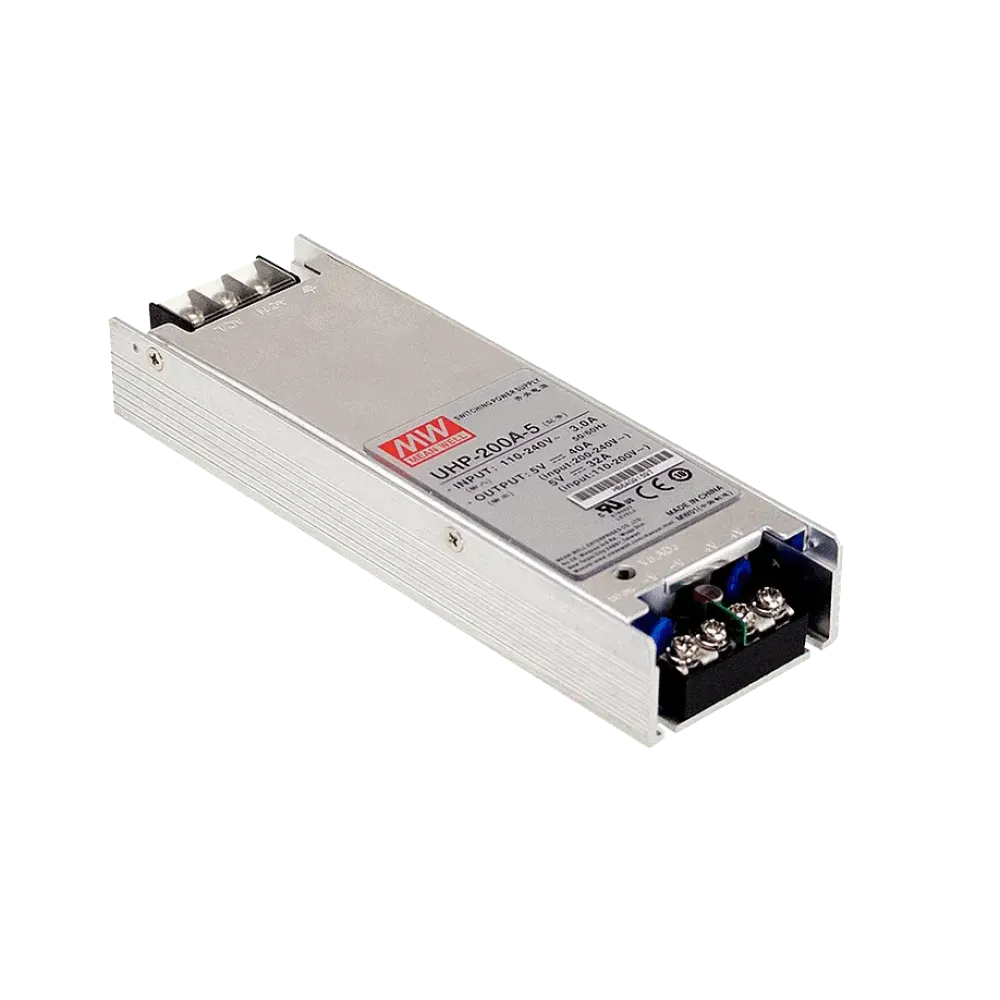

UHP-200A-5 series is a slim power supply in a housing for LED display applications. The very high efficiency at low output voltages makes the power supply unit the ideal solution for supplying LED video displays and display panels.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Low leakage current of 1.0mA
- Dimensions 167 x 55 x 26mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 4.75 V |
| Length | 167 mm |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Width | 55 mm |
| Height | 26 mm |
| Input voltage range (VAC) | 90-264 V |
| Power | 200 W |
| Maximum VDC setting range | 5.3 V |
