About the product

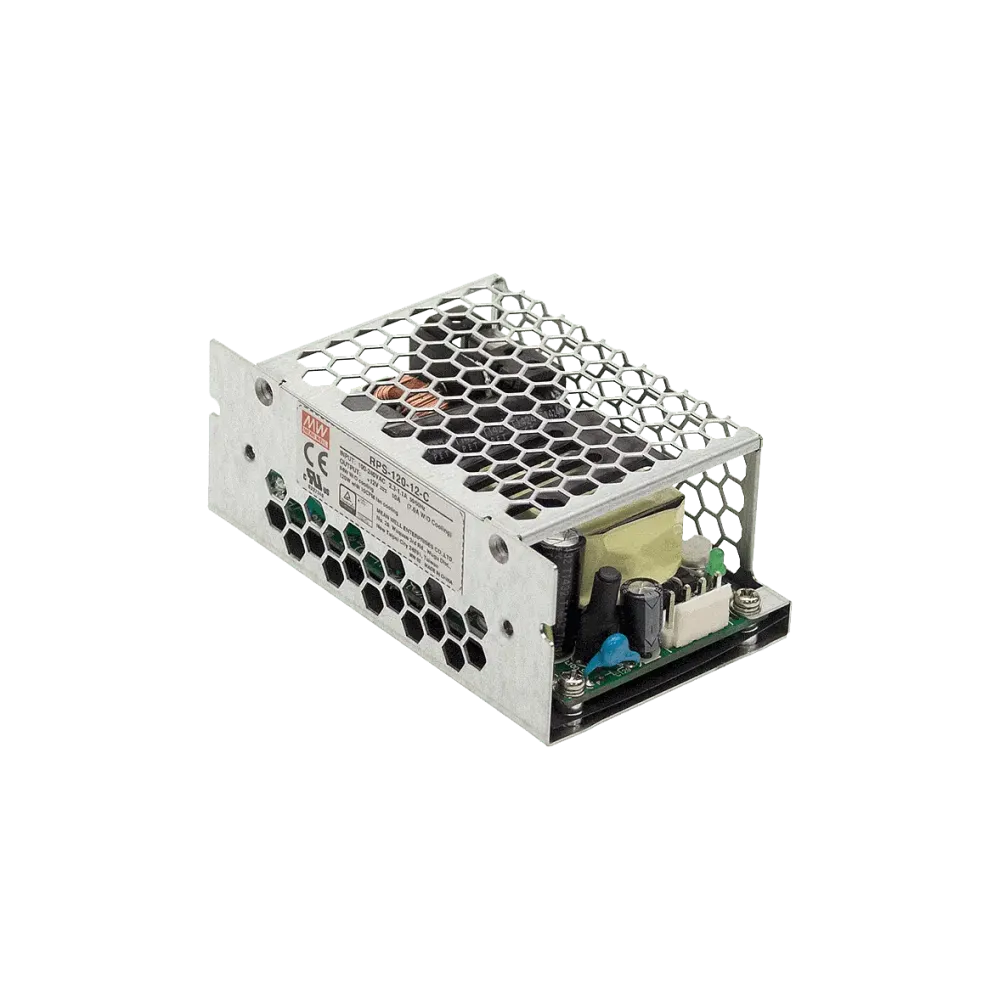

RPS-120-15C is a power supply unit for medical applications in a housing
Technical data
- Input voltage 80 to 264Vac
- No load power consumption <0.3W
- 120W power with 10CFM forced ventilation
- 84W Convection power
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 103.4 x 62 x 40mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 15.8 V |
| Additional functions | 12VDC auxiliary output |
| Length | 103.4 mm |
| Application | Household, Medical |
| Protection class | Class I |
| Height | 40 mm |
| Input voltage range (VAC) | 80-264 V |
| Output voltage (VDC) | 15 V |
| Width | 62 mm |
| Power | 120 W |
| Minimum VDC setting range | 14.3 V |
