About the product

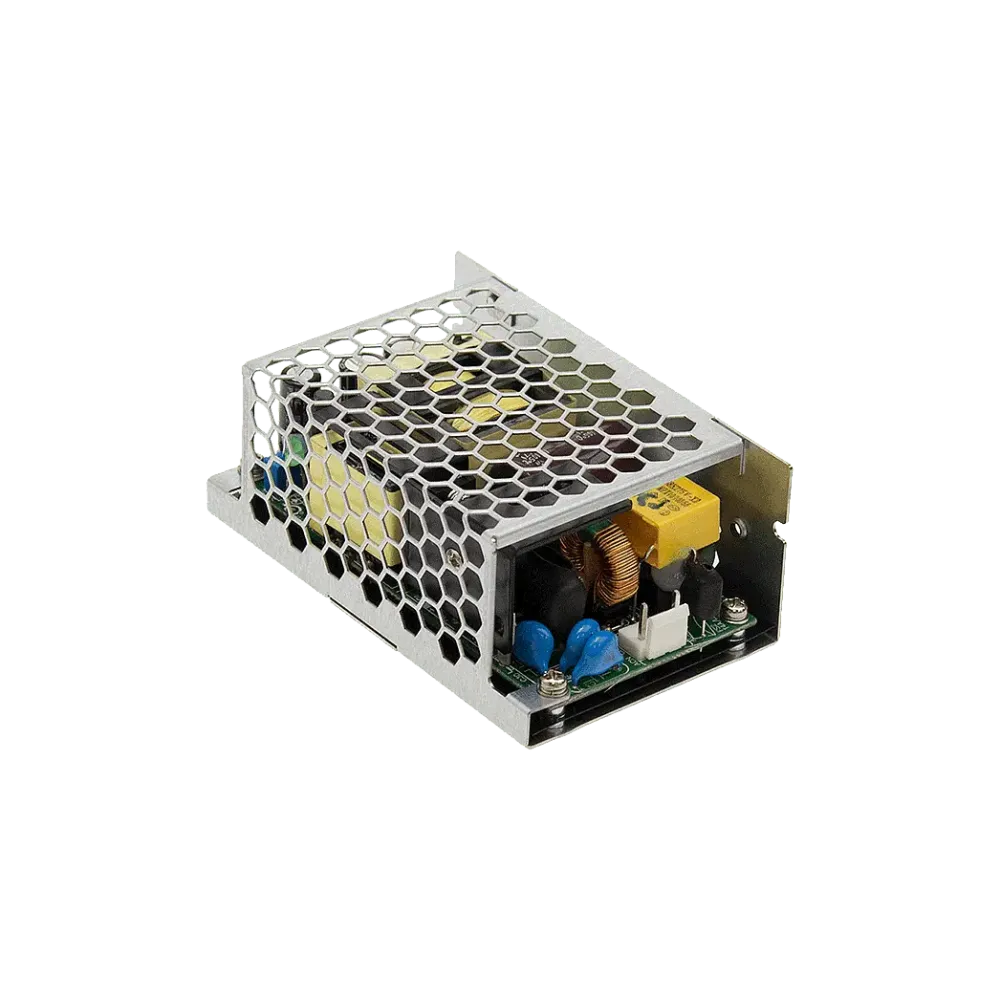

RPS-200-12-C is a power supply unit for medical applications in a housing
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.5W
- 200W power with 10CFM forced ventilation
- 140W power with convection
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 103.4 x 62 x 40mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 11.4 V |
| Additional functions | 12VDC auxiliary output |
| Length | 103.4 mm |
| Application | Household, Medical |
| Protection class | Class I |
| Height | 40 mm |
| Input voltage range (VAC) | 80-264 V |
| Width | 62 mm |
| Power | 200 W |
| Output voltage (VDC) | 12 V |
| Maximum VDC setting range | 12.6 V |
