About the product

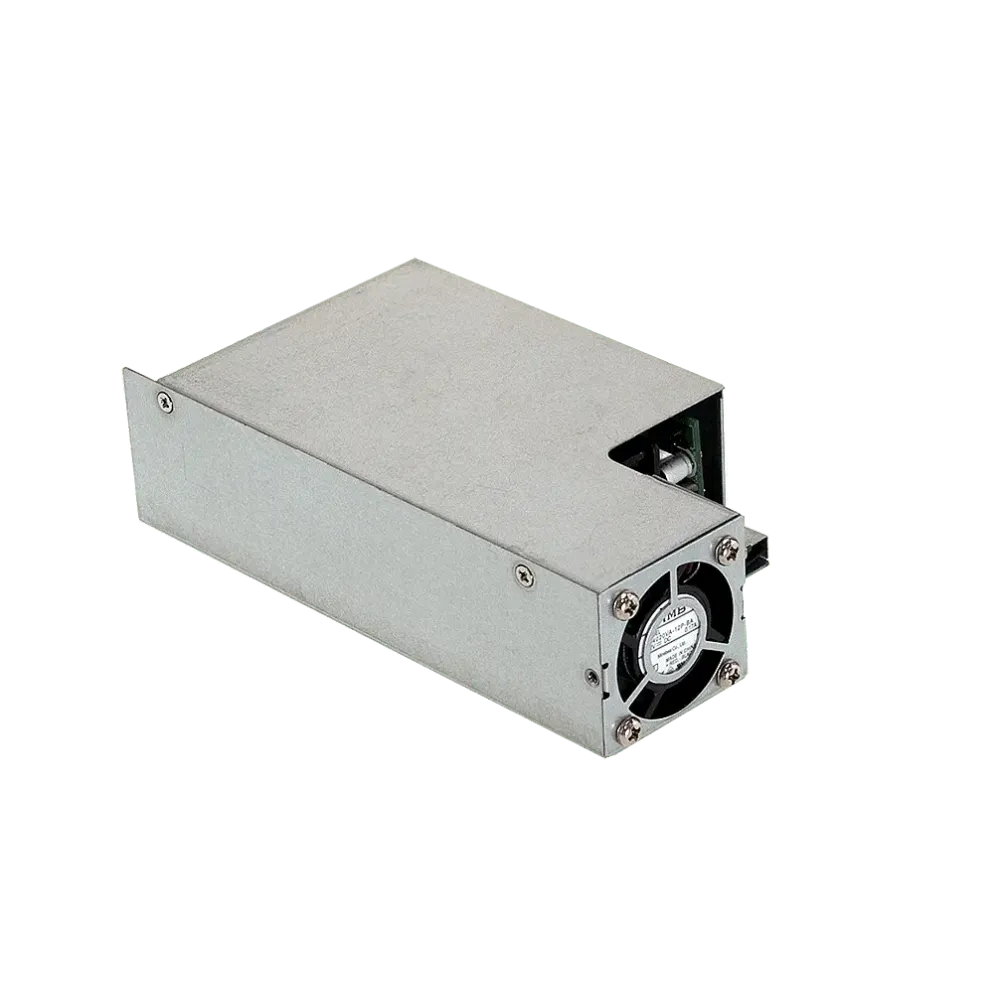

RPS-400-27-SF is a 400W medical power supply unit with high power density and a built-in fan on the side.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.5W
- Medical approval 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Leakage current 250µA
- 5V, 0.6A Stand-by output
- Remote ON / OFF, built-in remote sense
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 151 x 86.6 x 43mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 28.4 V |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
| Control signals | Remote ON/OFF, Remote Sense |
| Height | 43 mm |
| Output voltage (VDC) | 27 V |
| Status signals | DC OK signal |
| Application | Household, Medical |
| Protection class | Class I |
| Width | 86 mm |
| Power | 400 W |
| Length | 160 mm |
| Input voltage range (VAC) | 80-264 V |
| Minimum VDC setting range | 25.6 V |
Data sheets
