About the product

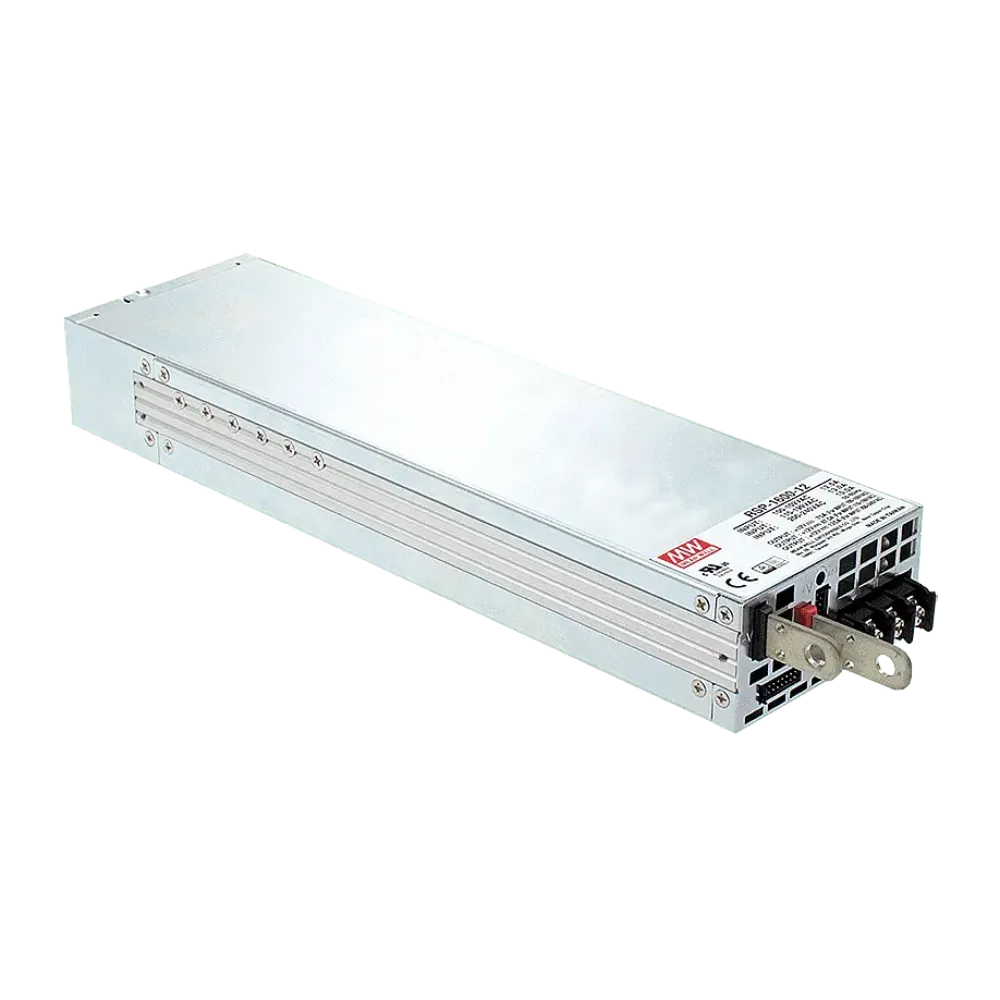

RSP-1600-36 is a power supply unit in a housing for industrial applications.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Output voltage can be trimmed between 40 - 125% using an external control signal (60 - 125% for the RSP-1600-12)
- Active current sharing up to 9600W (5+1)
- DC OK signal and overtemperature alarm signal (OTP)
- Air cooling with integrated DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 300 x 85 x 41mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 45 V |
| Control signals | Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense |
| Status signals | DC OK signal, temperature alarm |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output, switchable in parallel |
| Power | 1602 W |
| Length | 300 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 41 mm |
| Width | 85 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 36 V |
| Minimum VDC setting range | 14.4 V |
