1500W power supply 12V/125A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

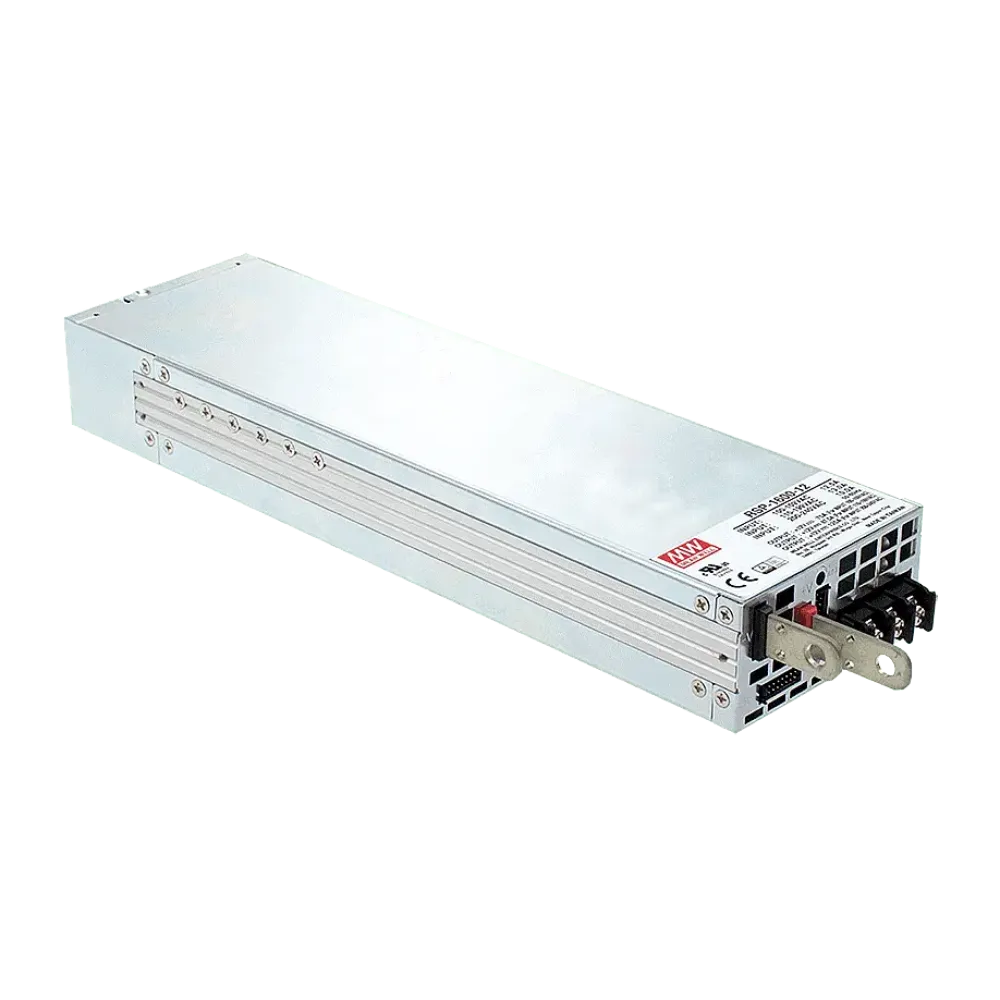

RSP-1600-12 is a power supply unit in a housing for industrial applications.

Input voltage 90 to 264Vac
with active PFC
Remote Sense and Remote On/Off functions integrated
Auxiliary circuits 5V/0.3A and 12V/0.8A
Output voltage can be trimmed between 40 - 125% using an external control signal (60 - 125% for the RSP-1600-12)
Active current sharing up to 9600W (5+1)
DC OK signal and overtemperature alarm signal (OTP)
Air cooling with integrated DC fan
Operating temperature range from -30°C to +70°C
Dimensions 300 x 85 x 41mm (L x W x H)

Manufacturer	MEAN WELL
Status signals	DC OK signal, temperature alarm
Additional functions	5VDC auxiliary output, 12VDC auxiliary output, switchable in parallel
Maximum VDC setting range	15 V
Minimum VDC setting range	4.8 V
Length	300 mm
Power	1500 W
Protection class	Class I
Application	ITE/AV
Height	41 mm
Width	85 mm
Input voltage range (VAC)	90-264 V
Output voltage (VDC)	12 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
