100W power supply 12V/8.34A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

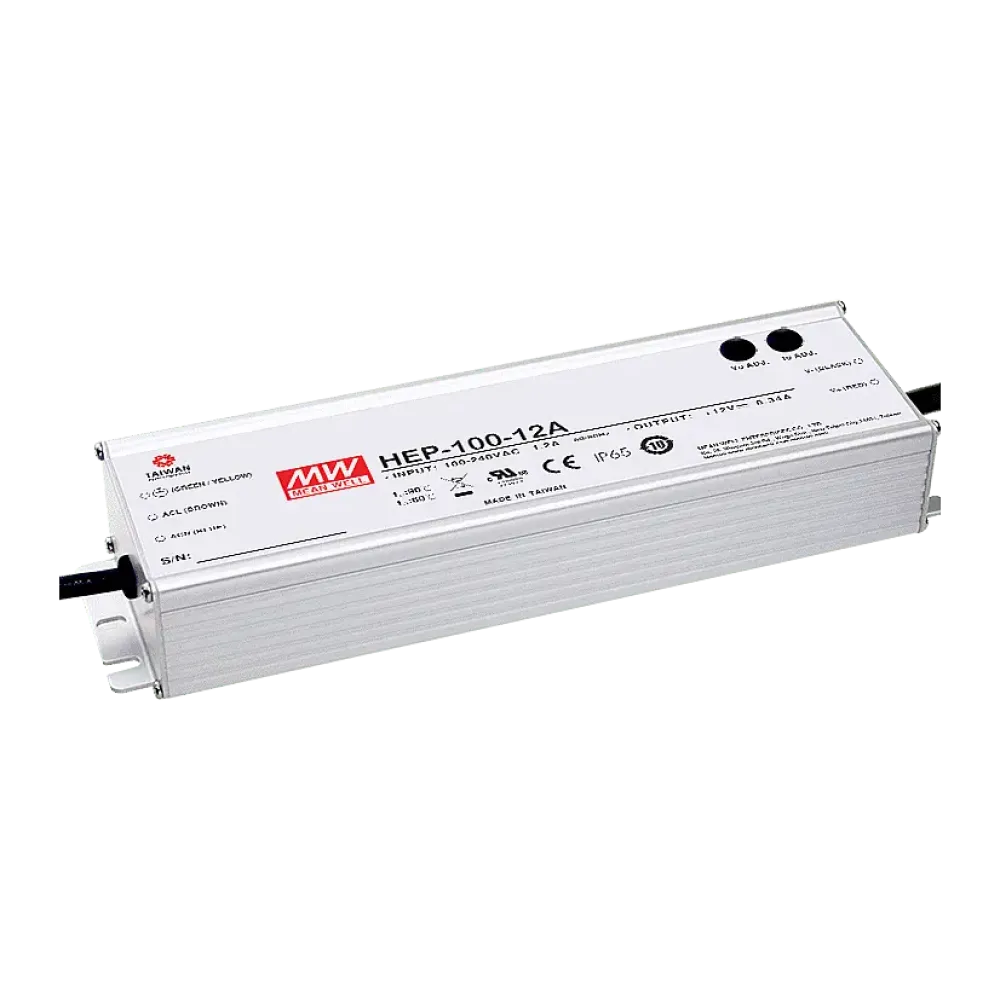

HEP-100-12A is a robust power supply unit for harsh environmental conditions. Thanks to its fully encapsulated construction, the power supply unit is designed for use in damp, dusty, oily and vibrating environments.

Technical data

Input voltage 90 to 305Vac
With active PFC
Current and voltage adjustable on the power supply unit
IP65 design splash-proof
Designed for operations up to max. 5000m.a.s.l. operating altitude
Very robust design with a long service life
Fully encapsulated in aluminum housing
Suitable for use in a harsh environment with high dust density, humidity, vibration and altitude
Operating temperature range from -55°C to +70°C
Surge immunity up to 6kV
Vibration test up to 10G
Dimensions 220 x 68 x 38.8mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Minimum VDC setting range	10.8 V
IP protection	IP65
Protection class	Class I
Application	ITE/AV
Input voltage range (VAC)	85-264 V
Power	100 W
Length	220 mm
Output voltage (VDC)	12 V
Height	38.8 mm
Width	68 mm
Maximum VDC setting range	13.5 V
