About the product

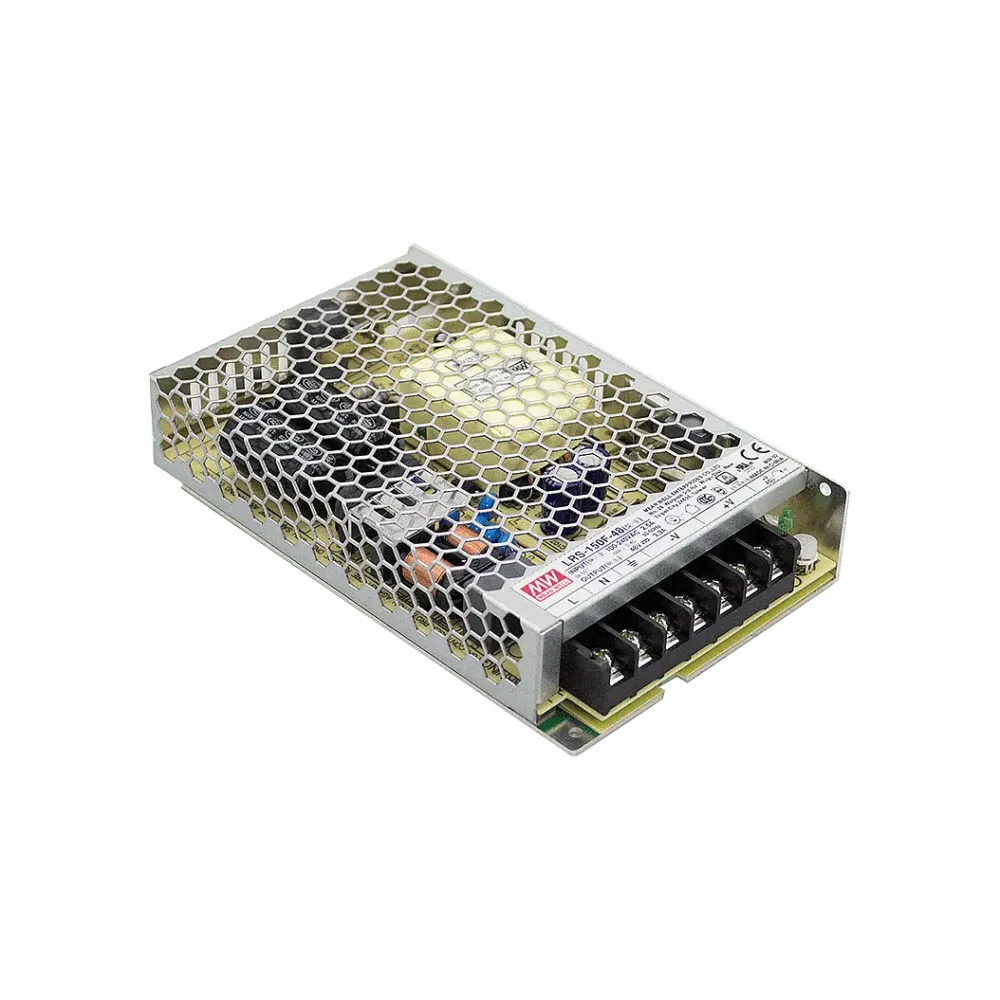

LRS-150F-36 is a power supply unit in a perforated metal housing with a low height of only 30mm.
Technical data
- Input voltage 85 to 264Vac
- Power consumption at no load 0.3W
- Metal housing with screw terminals
- Complies with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
- Designed for operations up to max. 5000m.a.s.l. operating altitude
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 159 x 97 x 30mm (L x W x H)
Product specifications
| Height | 30 mm |
| Maximum VDC setting range | 39.6 V |
| Application | Budget, ITE/AV |
| Power | 154 W |
| Width | 97 mm |
| Length | 159 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Output voltage (VDC) | 36 V |
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 32.4 V |
