About the product

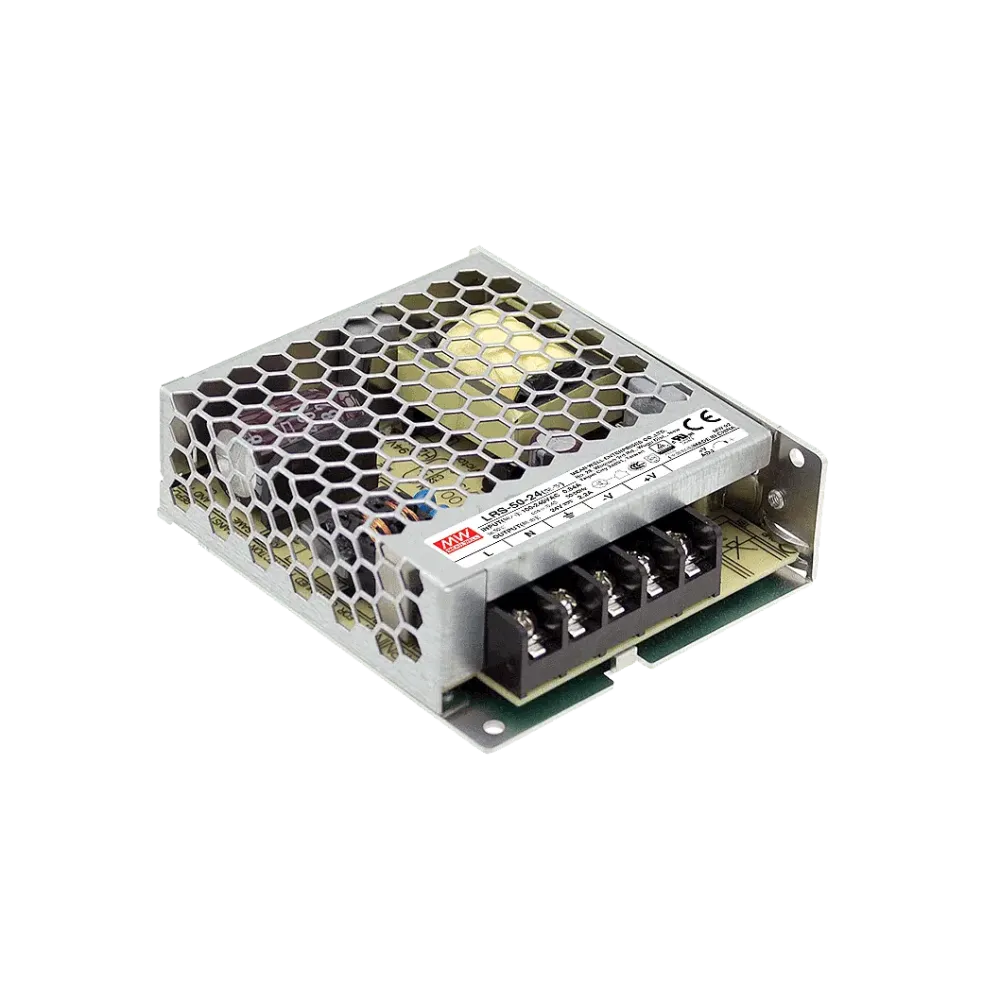

LRS-50-24 is a power supply unit in a perforated metal housing with a low height of only 30mm.
Technical data
- Input voltage 85 to 264Vac
- Power consumption at no load <0.2W
- Metal housing with screw terminals
- Complies with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
- designed for operations up to max. 5000m.a.s.l. operating altitude
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 99 x 82 x 30mm (L x W x H)
Product specifications
| Height | 30 mm |
| Maximum VDC setting range | 28.8 V |
| Application | Budget, ITE/AV |
| Width | 82 mm |
| Power | 52 W |
| Length | 99 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Manufacturer | MEAN WELL |
| Output voltage (VDC) | 24 V |
| Minimum VDC setting range | 21.6 V |
