About the product

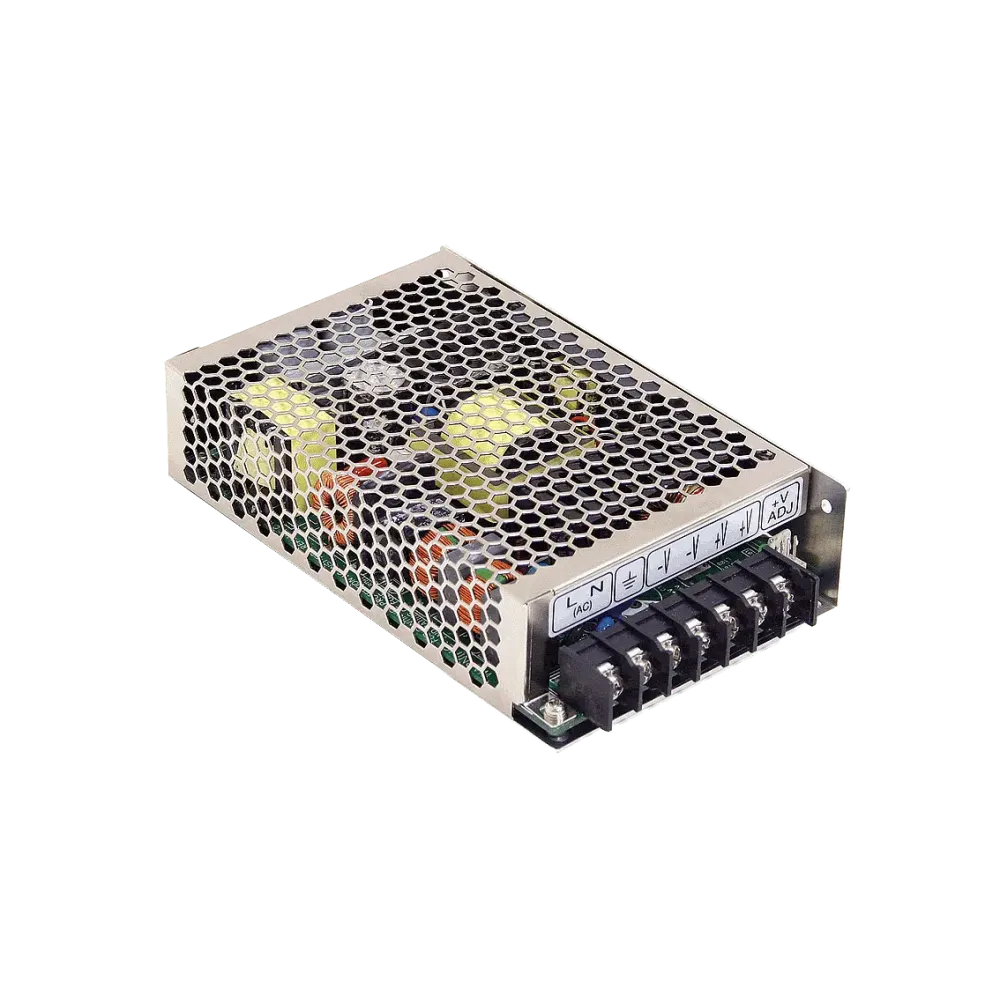

MSP-100-12 is a robust, fanless switching power supply for medical MOOP applications with high demands on service life and reliability.
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Power consumption at no load 0.5W
- Medical approval (MOOP level)
- Leakage current ≤300 µ A
- Remote On/Off function
- Operating temperature range from -40°C to +60°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 159 x 97 x 38mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 13.8 V |
| Control signals | Remote ON/OFF |
| Power | 102 W |
| Application | Medical |
| Width | 97 mm |
| Length | 159 mm |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Height | 38 mm |
| Output voltage (VDC) | 12 V |
| Minimum VDC setting range | 11.4 V |
