About the product

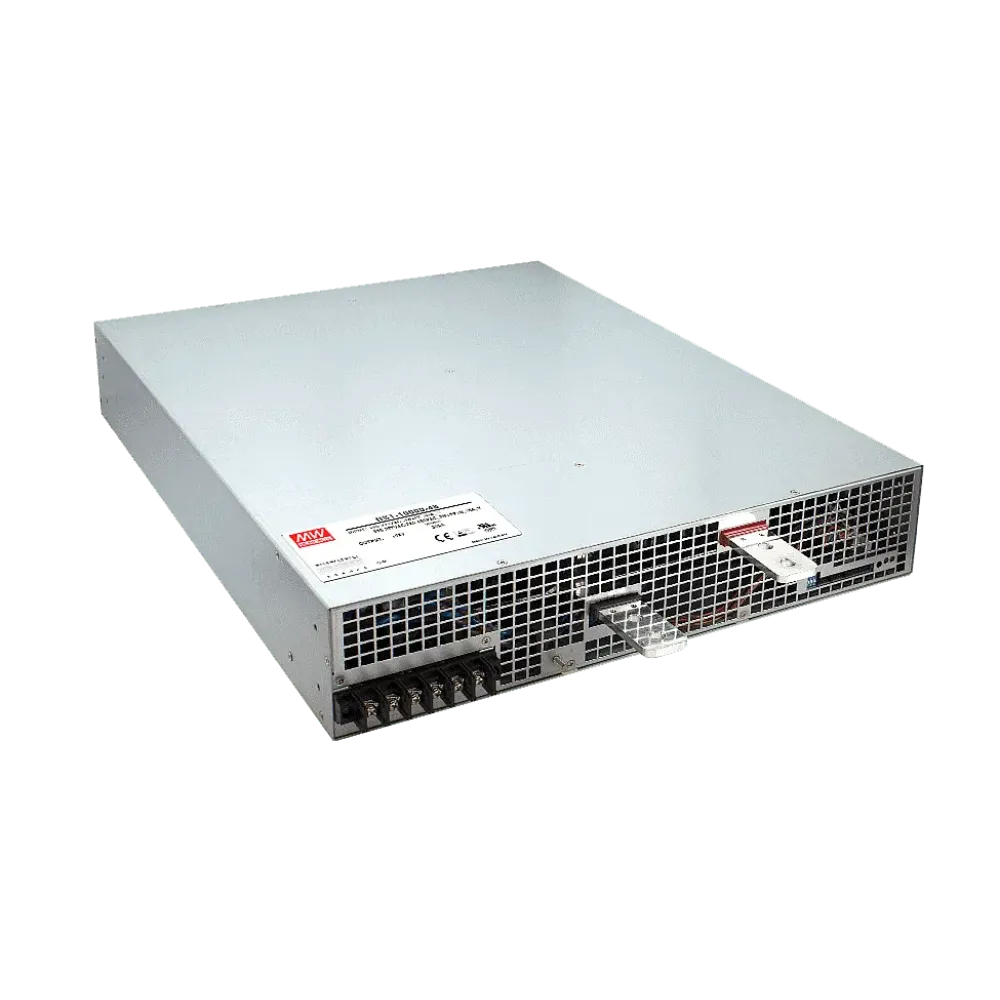

RST-10000-48 is a 10kW power supply unit with 3-phase input.

Three-phase input voltage range 196 to 305Vac (3-wire / delta connection) or 340 to 530Vac (4-wire / star connection)
With active PFC
Remote Sense and Remote On/Off functions integrated
Auxiliary circuit 12V/0.1A
Output voltage can be trimmed between 20 - 120% using an external control signal
Output current can be trimmed between 20 - 100% using an external control signal
Current sharing with up to 2 units up to 20kW
Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
Air cooling with integrated, speed-controlled DC fan
Operating temperature range from -30°C to +70°C
Dimensions 540 x 424 x 83.5mm (L x W x H)

Manufacturer	MEAN WELL
Status signals	AC OK signal, DC OK signal, temperature alarm
Input voltage range (VAC)	340-530 V
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Minimum VDC setting range	9.6 V
Additional functions	12VDC auxiliary output, switchable in parallel
Power	10080 W
Width	424 mm
Length	540 mm
Height	83.5 mm
Application	ITE/AV
Output voltage (VDC)	48 V
Maximum VDC setting range	57.6 V
