About the product

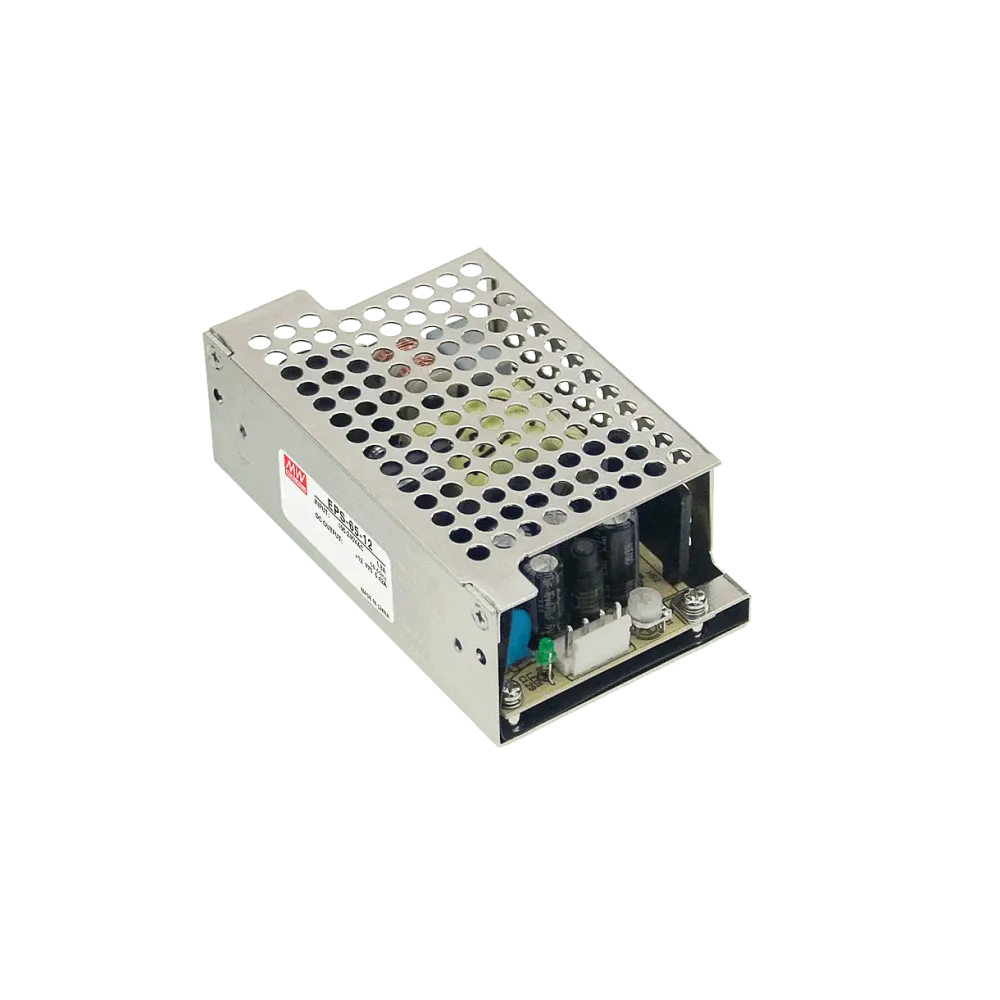

EPS-65-36-C is a 65 Watt power supply unit in a housing with 36V/1.8A output.
Technical data
- Input voltage 90 to 264Vac
- No load power consumption <0.3W
- With perforated sheet metal housing
- Very compact design
- LED indicator for power-on
- Peak load for 10 sec.
- Short-circuit, overload and overvoltage protection
- Dimensions 103.4 x 62 x 37mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Additional functions | Peak Power |
| Maximum VDC setting range | 39.6 V |
| Length | 103.4 mm |
| Protection class | Class I |
| Height | 37 mm |
| Application | ITE/AV |
| Power | 65 W |
| Width | 62 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 36 V |
| Minimum VDC setting range | 32.4 V |
Data sheets
