About the product

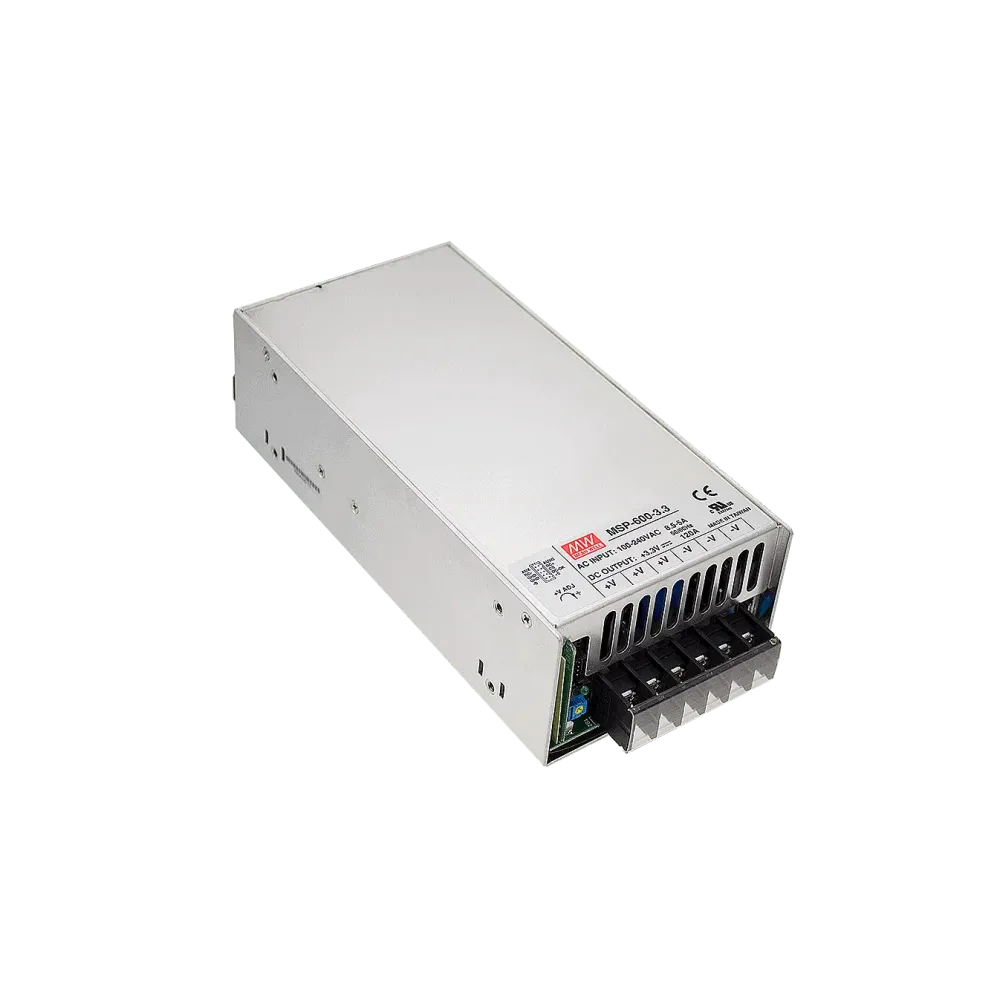

MSP-600-36 is a robust switching power supply for MOOP medical applications with integrated fan for applications with high demands on service life and reliability.
Technical data
- Input voltage 85 to 264Vac
- With active PFC
- Power consumption at no load 0.8W
- Medical approval (MOOP level)
- Leakage current ≤300µA
- Remote Sense function
- Remote On/Off function
- DC OK signal
- Standby 5V/0.3A
- Current sharing up to 2400W (3+1) (24V, 36V, 48V)
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 218 x 105 x 63. 5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Maximum VDC setting range | 39.6 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Additional functions | 5VDC auxiliary output, switchable in parallel |
| Power | 630 W |
| Height | 63.5 mm |
| Length | 218 mm |
| Width | 105 mm |
| Application | Medical |
| Status signals | DC OK signal |
| Protection class | Class I |
| Input voltage range (VAC) | 85-264 V |
| Output voltage (VDC) | 36 V |
| Minimum VDC setting range | 28.8 V |
